M A E D A Crawler Crane 4.2 MONITOR
5/2020 CC1908S-1 4-5

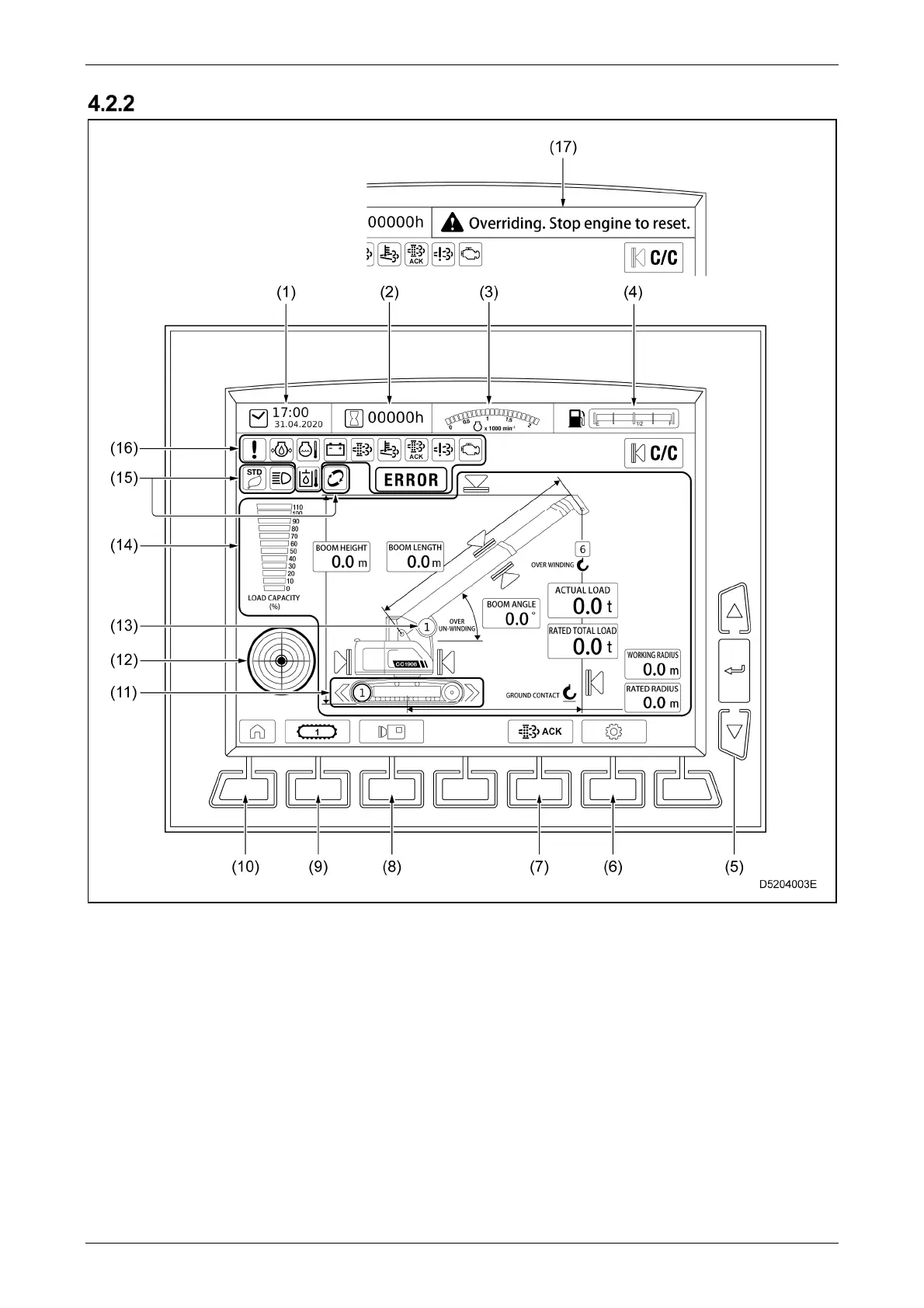

HOME SCREEN
(1) Clock/date display
(2) Hour meter
(3) Engine speed
(4) Fuel gauge
(5) Pop-up selector switches (Home screen)
(6) User setting switch
(7) DPF stationary regeneration switch
(8) Camera selector switch
(9) Travel 1st speed/2nd speed selector switch
(10) Home switch
(11) Travel status
(12) Level gauge
(13) Winch 1st speed/2nd speed display
(14) Moment limiter display
(15) Status display
(16) Warning display
(17) Message display
 For details on the moment limiter part names,
refer to "4.3.4 MOMENT LIMITER
FUNCTION" on P. 4-26.
