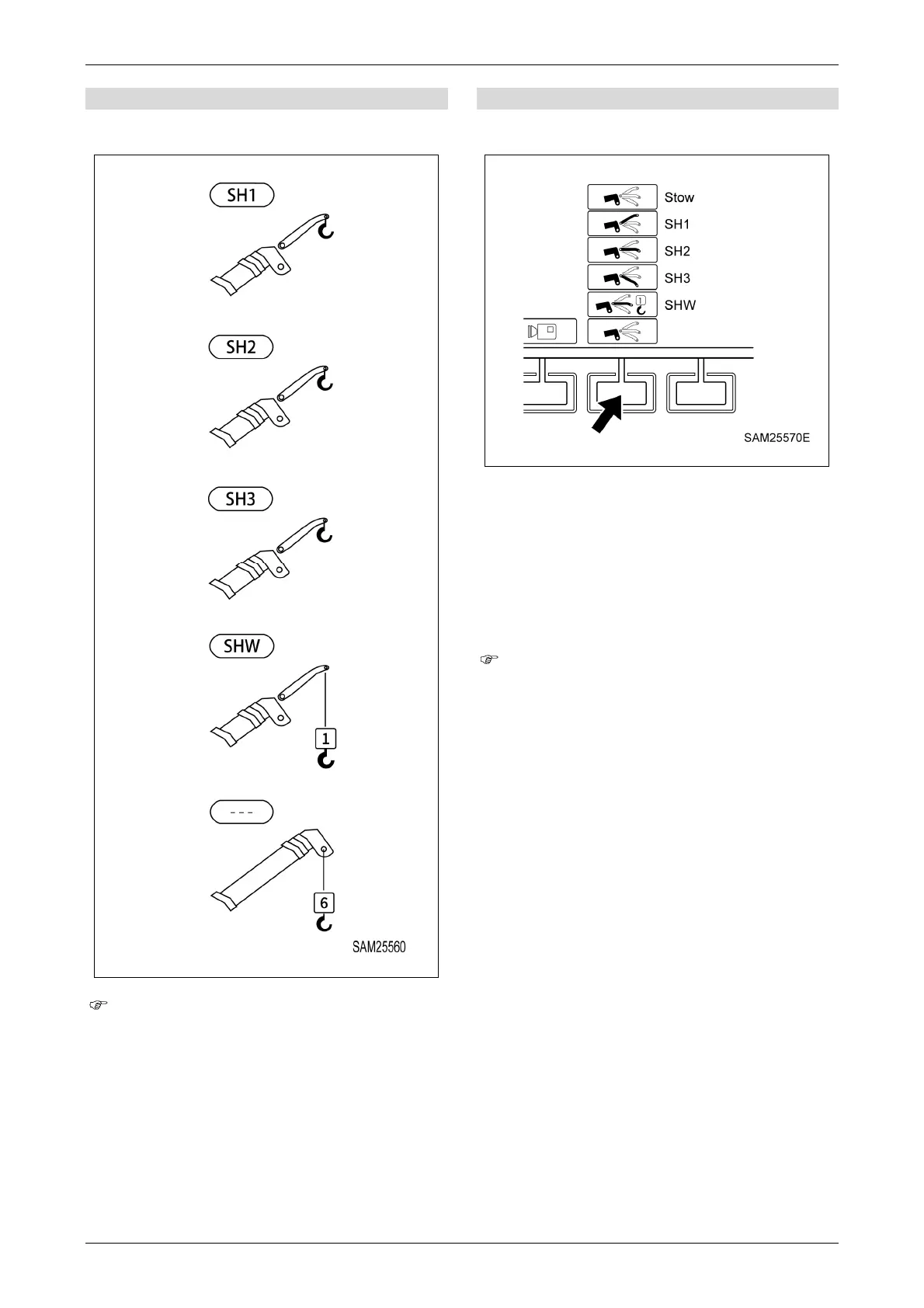

[1] Searcher Hook Position Display
Displays the position of the currently set searcher
hook.
In the searcher hook mode, the position
display remains even if the searcher hook is
stowed and changed to crane operation with
the main hook.
In this condition, the weight of the searcher
hook will be added to the actual load.
[2] Searcher Hook Position Switch
Use this to switch the searcher hook position.
The switchover is as follows in order from the top.
• Stow ：Stow searcher hook
• SH1 ：SH1 position
• SH2 ：SH2 position
• SH3 ：SH3 position
• SHW ：Searcher hook winch
Switching cannot be performed until the crane
operation is stopped.
