M A E D A Crawler Crane 4.3 MOMENT LIMITER (OVERLOAD PREVENTION DEVICE)
5/2020 CC1908S-1 4-24

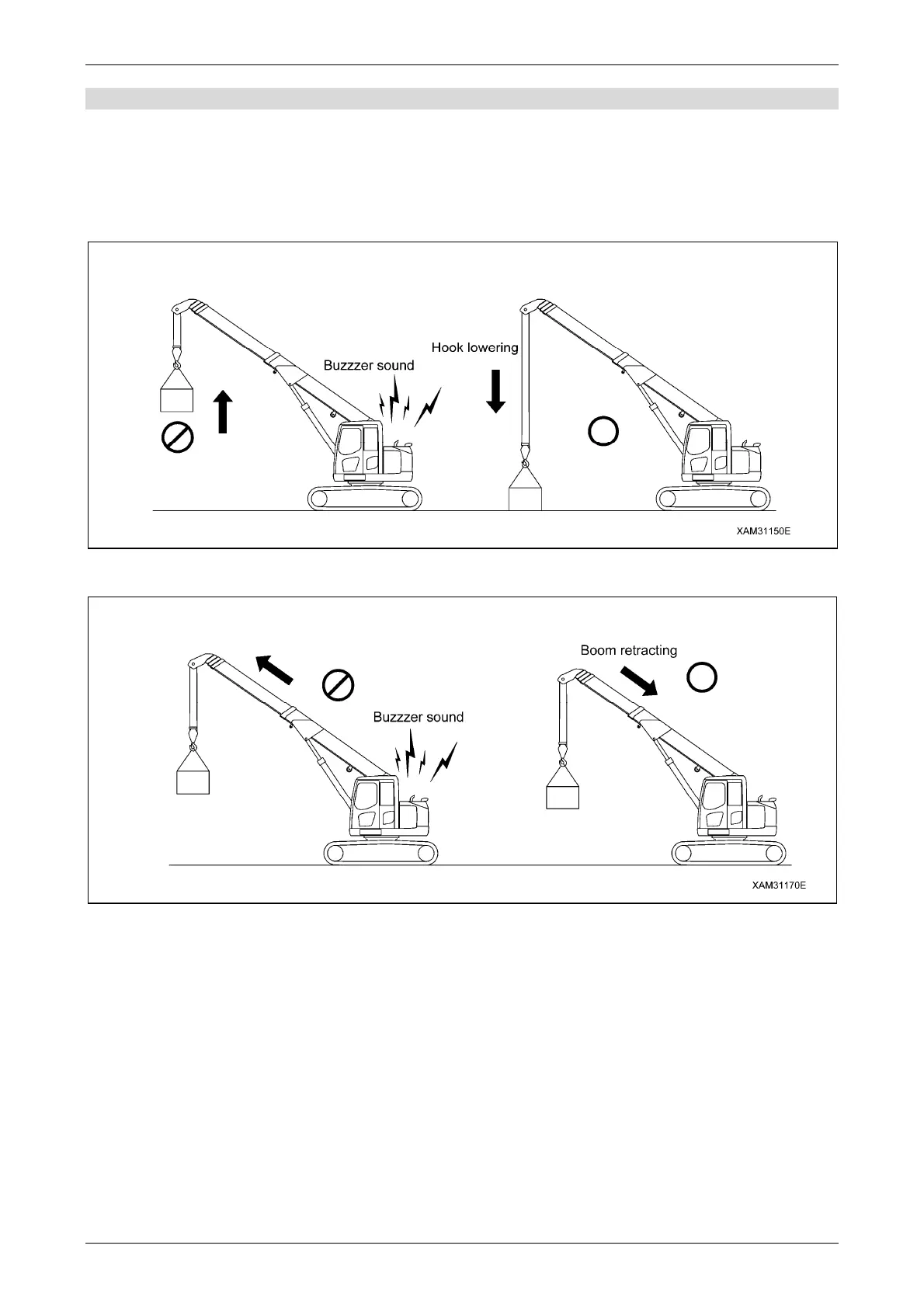

[4] Recovery operation after overload
To recover after an overload has occurred, use one of the following operations to reverse the crane from
the position where overload occurred.
The crane must be first moved back to within the safety area with a load factor of less than 90 % (working
status lamp: green).
1. Unwind the hook to lower the hoisted load to the ground.
2. Retract the boom.
