Manitowoc Grove GMK6300L User Manual

Operating elements for crane operation
9.1 Overview of the operating elements
9 - 46 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx

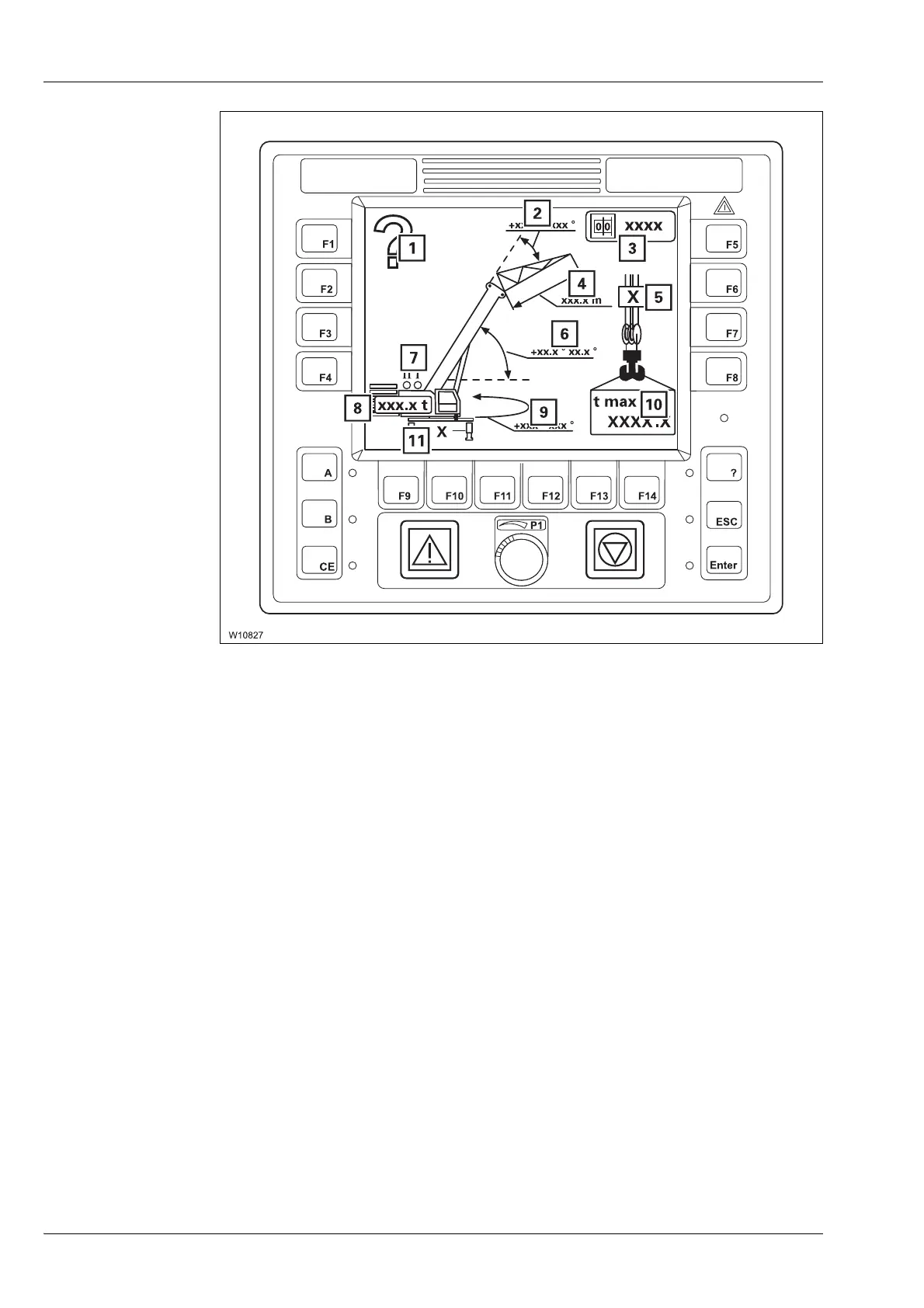

Rigging mode
monitoring
submenu
y
1 Query – accept rigging mode?
2 Permissible lattice extension working range
1)
3 RCL code
4 Length of lattice extension
5 Reeving
6 Permissible main boom working range
7 Hoists display
8 Counterweight
9 Permissible slewing range
10 Maximum load
11 Outrigger span
à Accepting the rigging mode, p. 11 - 29
1)
Additional equipment
