Operating elements for crane operation
9.1 Overview of the operating elements
Operating Manual GMK6300L 3 112 xxx en 9 - 47
xx.xx.xxxx

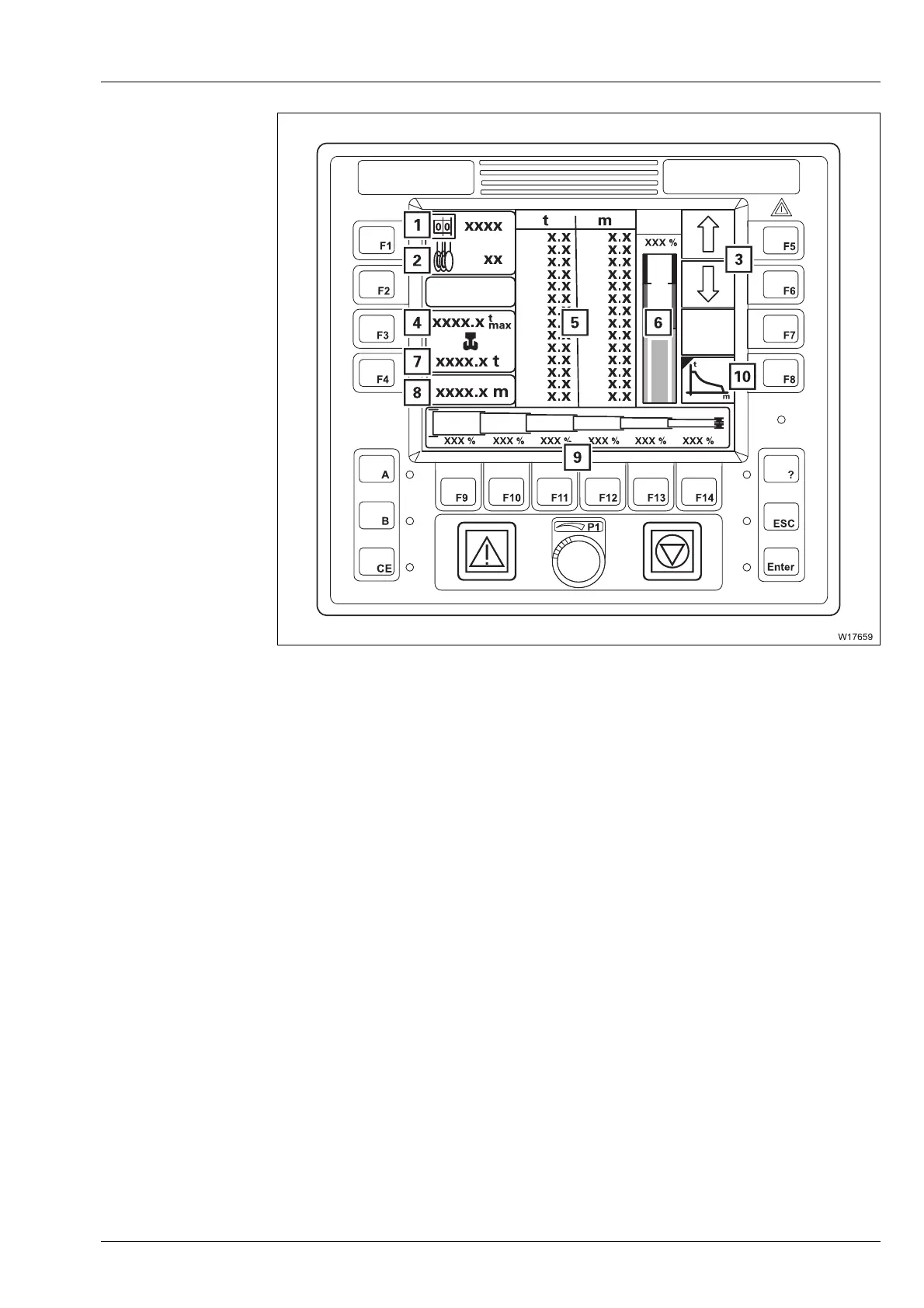

Lifting capacity
table submenu
y
s
1 Display RCL code à p. 9 - 106
2 Reeving display
à p. 9 - 106
3 Selection
4 Maximum load display
à p. 9 - 106
5 Lifting capacity table display
à p. 9 - 106
6 Current degree of utilisation display
à p. 9 - 106
7 Current load display
à p. 9 - 106
8 Current working radius display
à p. 9 - 106
9 Telescope status display/input
à p. 9 - 106
10 Working range submenu
1)
à p. 9 - 48
1)
Additional equipment
