Operating elements for crane operation
9.2 Short description of the operating elements
9 - 106 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx

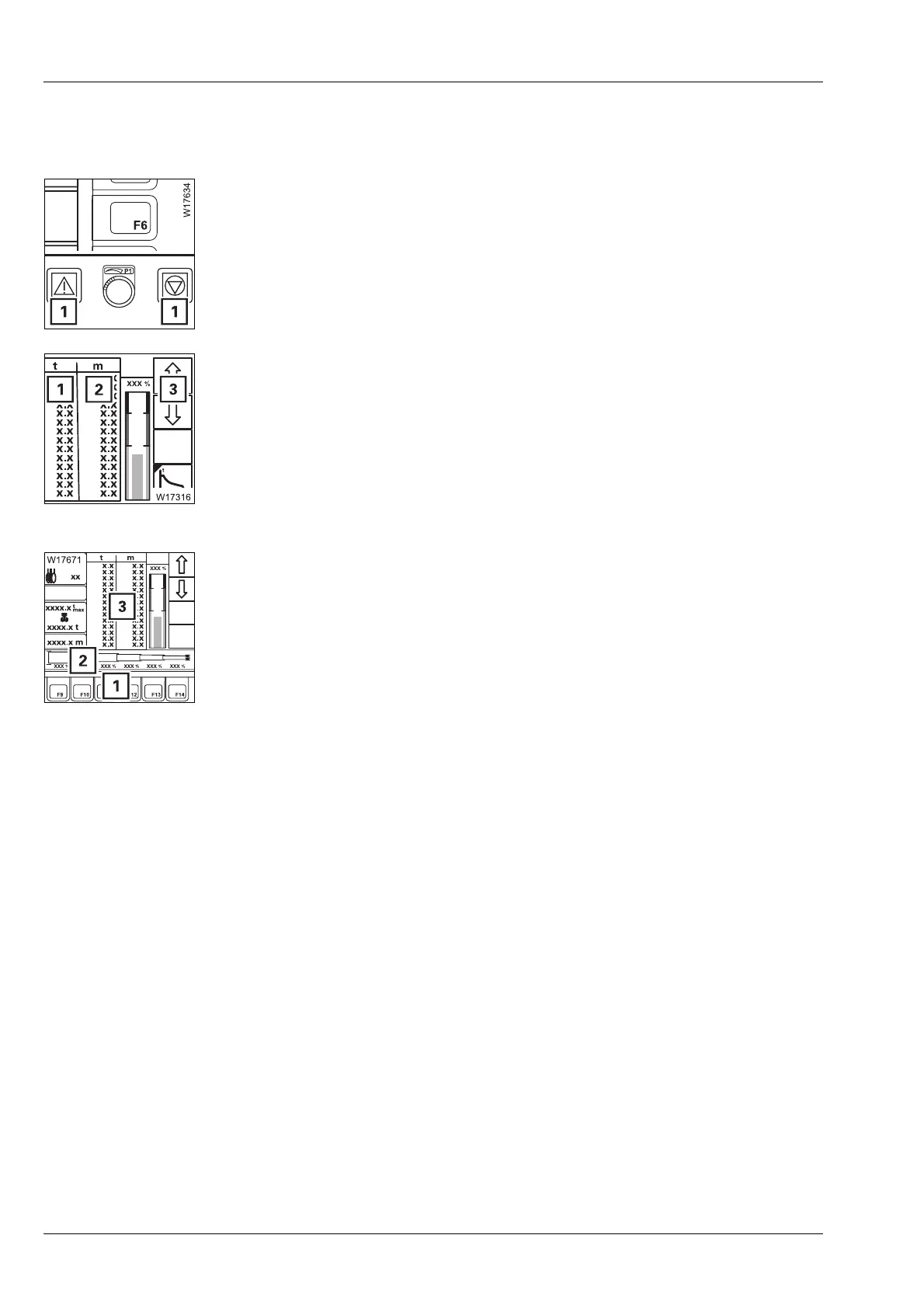

Submenu Lifting
capacity table
à Displaying the lifting capacity tables, p. 11 - 47
Lifting capacity table display
Values for displayed RCL code and displayed telescope status
Telescope status display/input
Other displays
Function as in
Monitoring submenu:
– To open: Press the button once – submenu opens, all crane movements
are blocked, the lights (
1) light up
1 Lifting capacity in tons (t) or in kilopounds (klbs)
2 Working radius in metres (m) or feet (ft)
3 Show other values given in the table
– Display: Telescope status (2) in per cent
– Input: Press button (1)
– New telescope status on display (2)
– Corresponding table on display (3)
or all values 0 = no table available
– Display RCL code
à p. 9 - 102
– Reeving display
à p. 9 - 102
– Maximum load display
à p. 9 - 104
– Current load display
à p. 9 - 103
– Current working radius display
à p. 9 - 105
– Current degree of utilisation
display
à p. 9 - 104
