Operating elements for crane operation
9.2 Short description of the operating elements
Operating Manual GMK6300L 3 112 xxx en 9 - 107
xx.xx.xxxx
Working range
submenu
à Displaying the lifting capacity tables, p. 11 - 47
Permissible working range display
Applies for displayed RCL code and displayed telescope status
Current position display
Telescope status display/input
Other displays
Similar functionality to the
Lifting capacity table submenu
s

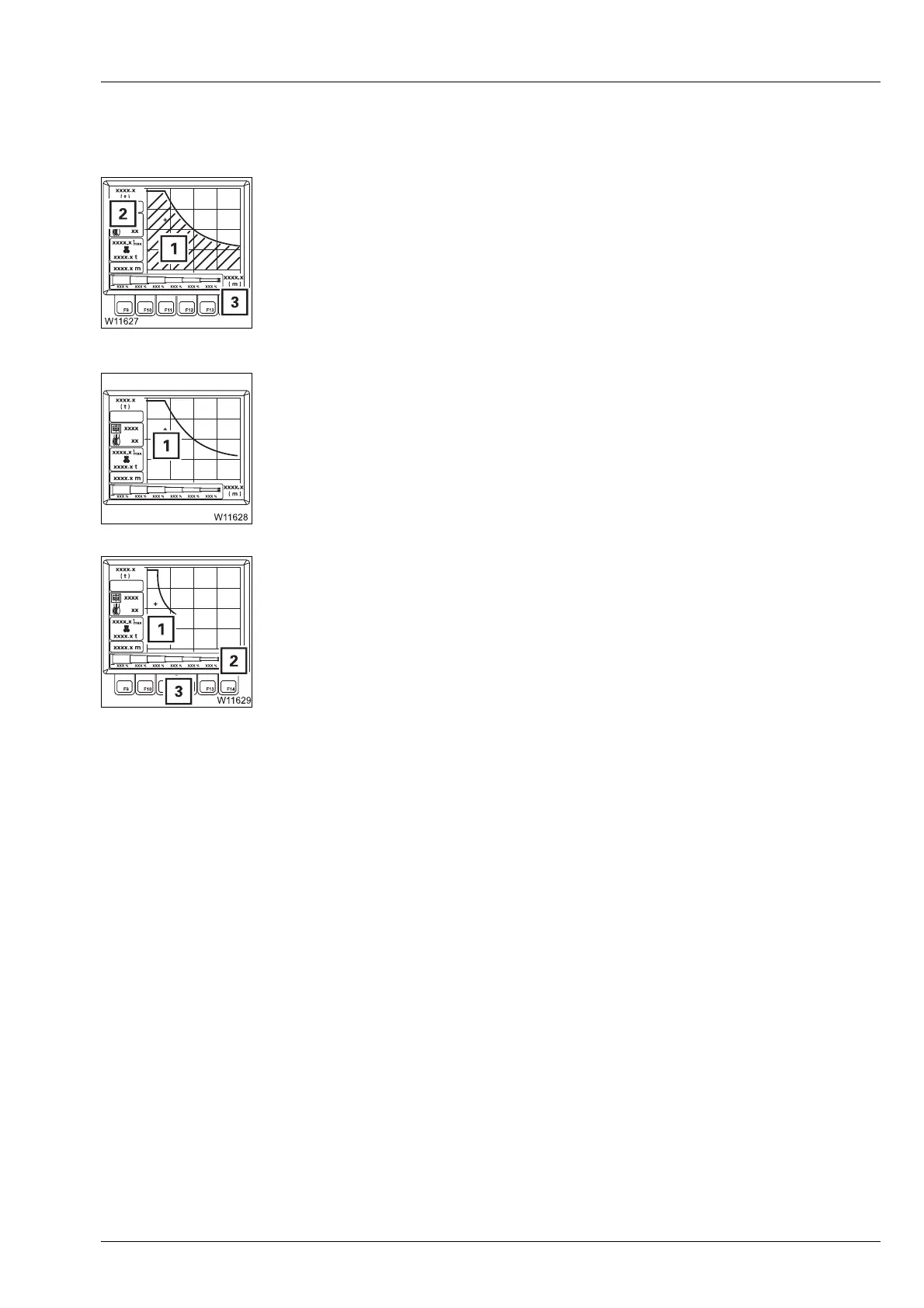

1 Permissible working range – surface under the curve
2 Maximum possible load
3 Maximum possible working radius
1 Current position – defined by current load and current working radius
– Display: Telescope status (2) in per cent
– Input: Press button (3)
– New telescope status on display (2)
– Corresponding working range on display (1)
or no display = telescope status outside the working range
