Operating elements for crane operation
9.1 Overview of the operating elements
9 - 54 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx

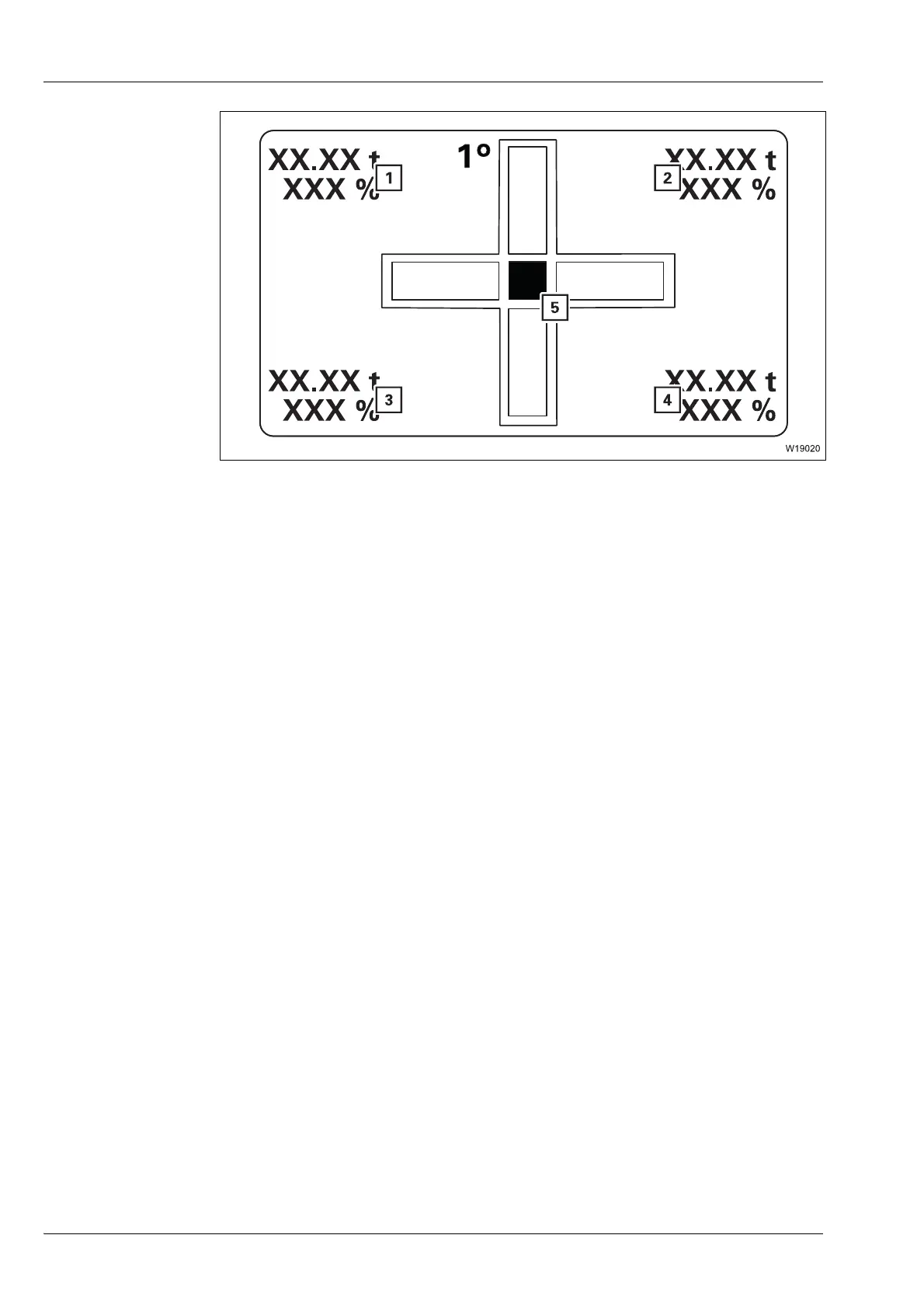

Inclination and
outrigger pressure
display
1 Left-hand outrigger pressure display, opposite
à p. 9 - 73
2 Right-hand outrigger pressure display, opposite
à p. 9 - 73
3 Left-hand outrigger pressure display
à p. 9 - 73
4 Right-hand outrigger pressure display
à p. 9 - 73
5 Current inclination display
à p. 9 - 70
