Operating elements for crane operation
9.2 Short description of the operating elements
Operating Manual GMK6300L 3 112 xxx en 9 - 69
xx.xx.xxxx

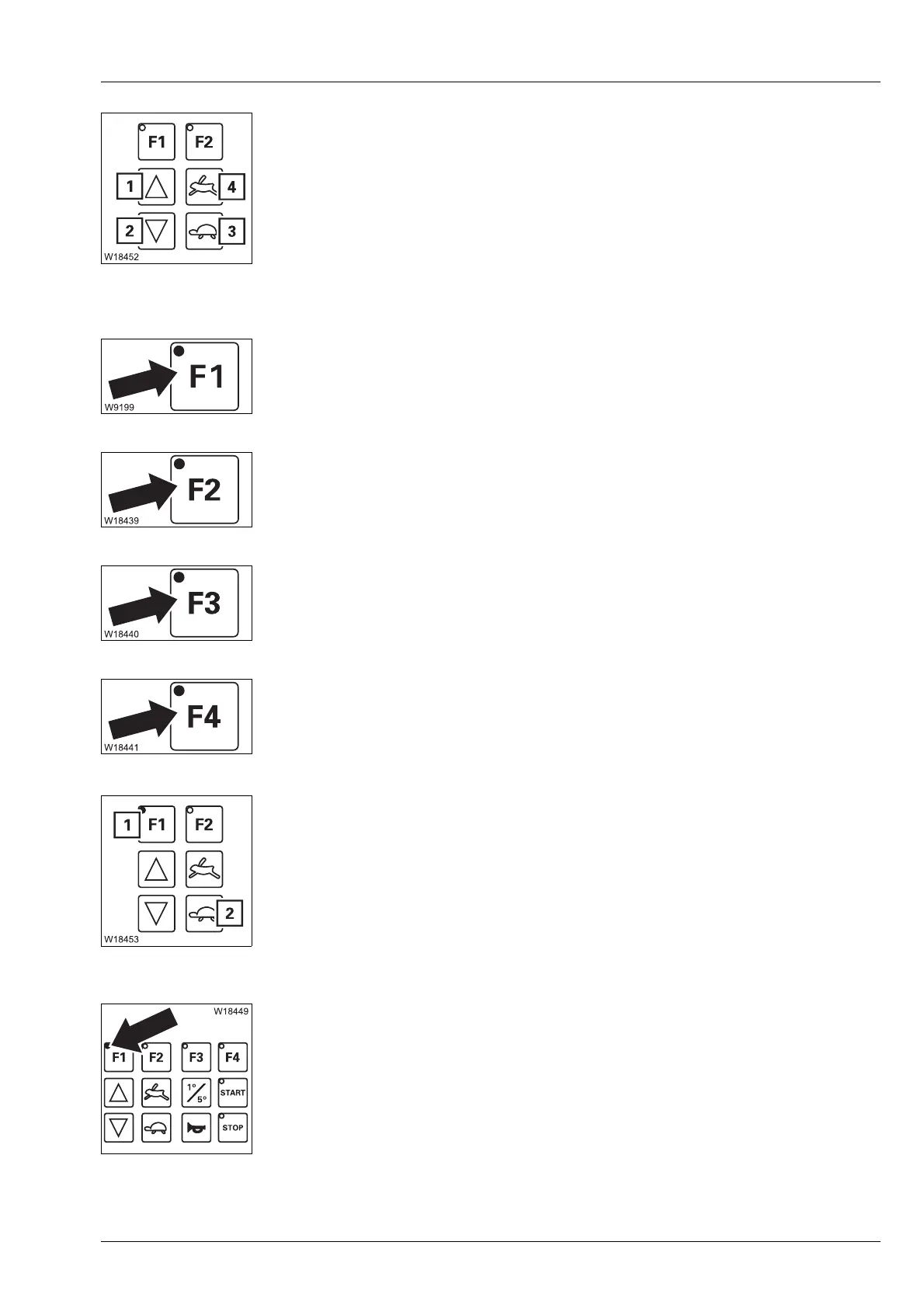

Extending/retracting all supporting cylinders
Button (3) or (4) is pressed.
Additional function F1 on
Always use in combination with other buttons.
Additional function F2 Raise axle is on
Select the axle pairs
Additional function F3 Raise axle is on
Select the axle pairs
Additional function F4
Switch between Inclination display/Raise axle menu
Position lights for indicator lamps
Light up when the ignition is on.
1Retract: Press button – all outrigger cylinders retract
2 Extend: Press button – all outrigger cylinders extend
Movement stops after the button is released, and when an end position is
reached;
à p. 12 - 42.
– Automatic alignment
Press button (1) and button (2) –
Truck crane is levelled horizontally
The process stops as soon as the truck crane is levelled horizontally or
the button is released
à p. 12 - 49
– Display field lighting off: Ignition on and no button activated yet
or no button activated within the last
10 seconds
– Display field lighting on: Press any button
à p. 12 - 36
