Crane operation
11.2 Operation of the rated capacity limiter
11 - 26 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx

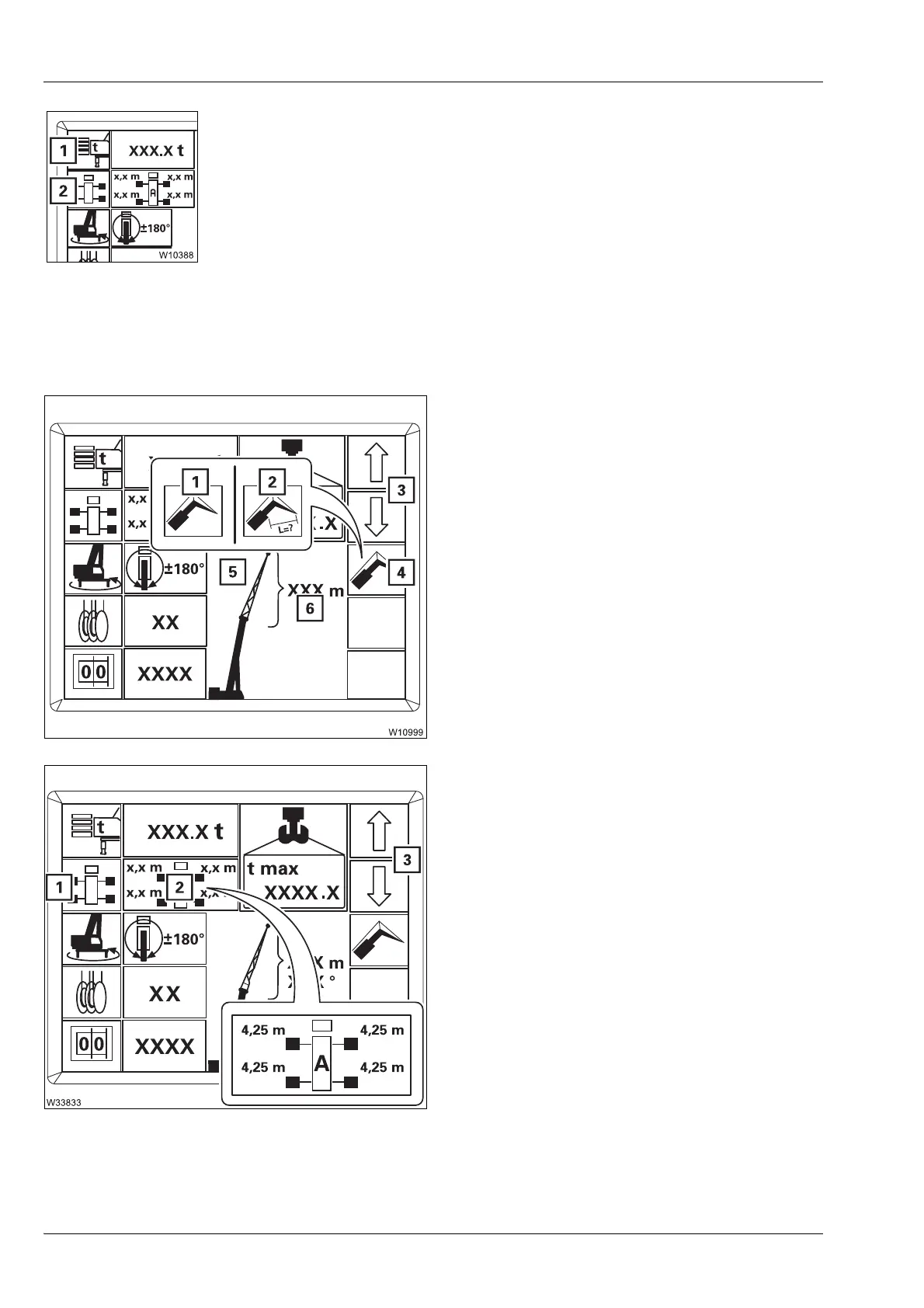

After the selection procedure, there are three options:
– Switching off the input mode
• Press button (1) once – symbol is grey.
– Switching over the input mode
• Press the button for the next component once, e.g. button (2) – symbol
is green.
– Accept the displayed rigging mode;
à Accepting the rigging mode,
p. 11 - 29.
Enter the other components of the current rigging mode in the same way.
– Boom system
• Press button (4) repeatedly until the symbol
for the required input is green.
• Press button (3) repeatedly until:
– The display (5) shows the rigged boom
system, e.g. the lattice extension or
– Until display (6) shows the rigged lattice
extension length, and in the case of an
inclinable lattice extension, the rigged
lattice extension angle.
– Outrigger span – without outrigger span
monitoring
Symbol (1) is green. Press the buttons (3)
repeatedly until the display (2) indicates
the current outrigger span, e.g. outrigger
span A.
The display indicates half the outrigger
span each on the left and right, e.g. 4.25 m
(13.9 ft) for an outrigger span of 8.50 m
(27.9 ft) in the case of outrigger span A.
1 Boom system entry
2 Lattice extension length/angle input
