Operating elements for driving

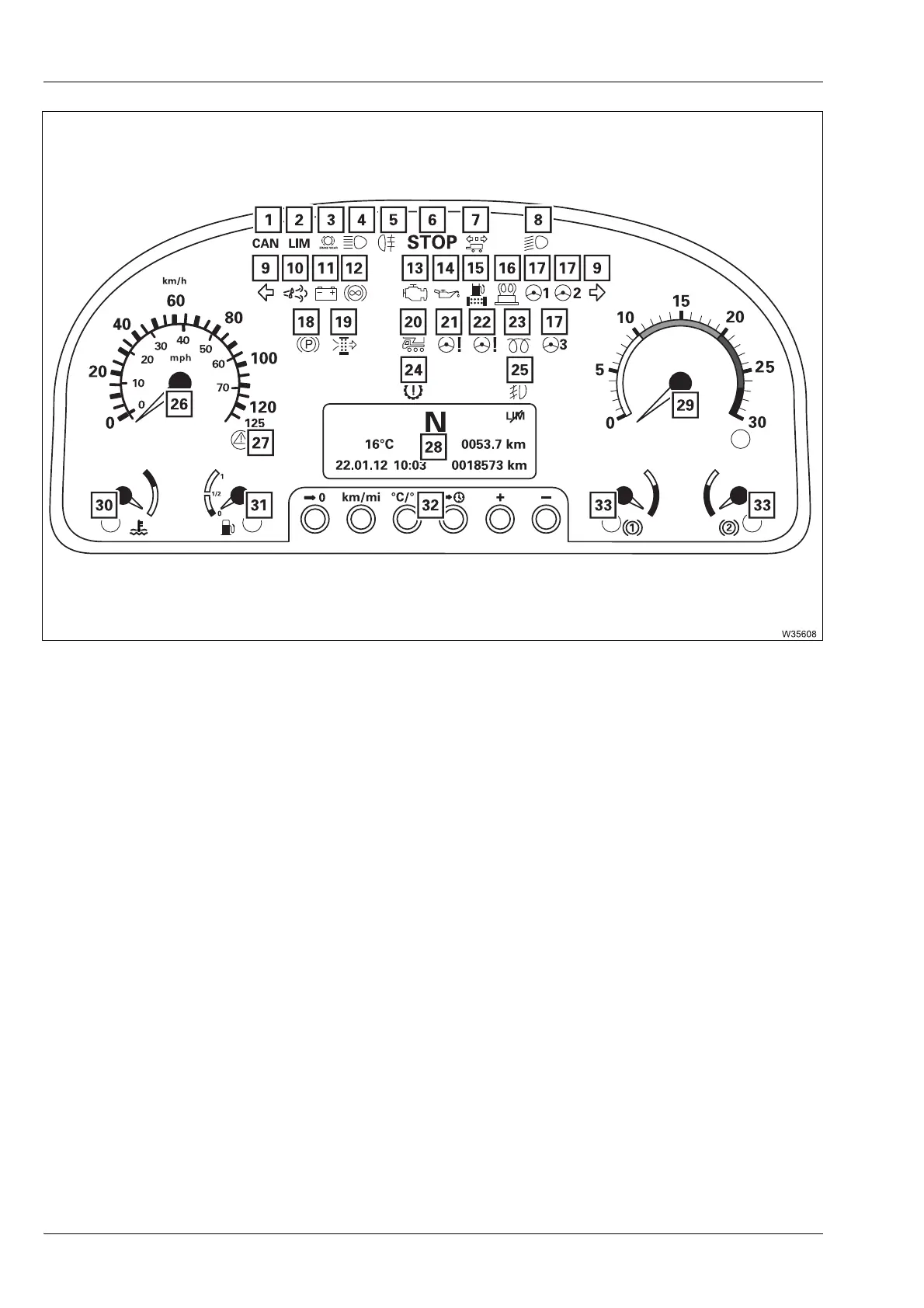

3.1 Overview of the operating elements
3 - 14 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx
12 Additional brake indicator lamp à p. 3 - 55
13 Engine warning lamp
à p. 3 - 39
14 Engine oil pressure
à p. 3 - 39
15 Fuel filter inspection lamp
3)
16 Flame start system warning lamp à p. 3 - 39
17 Steering circuit warning lamp
à p. 3 - 56
18 Parking brake indicator lamp
à p. 3 - 55
19 Air filter indicator lamp
2)
20 Superstructure ignition indicator lamp à p. 3 - 40
21 Steering malfunction
à p. 3 - 56
22 Steering warning lamp
à p. 3 - 57
23 Flame start system monitoring
1)
à p. 3 - 39
1)
Additional equipment
2)
à Maintenance Manual
3)
Additional equipment, currently not available
