Maytag MFR40PD - Remove & Replace Counter-Face Ring MFR18, 25, 30, 40, 50, 80

6-8

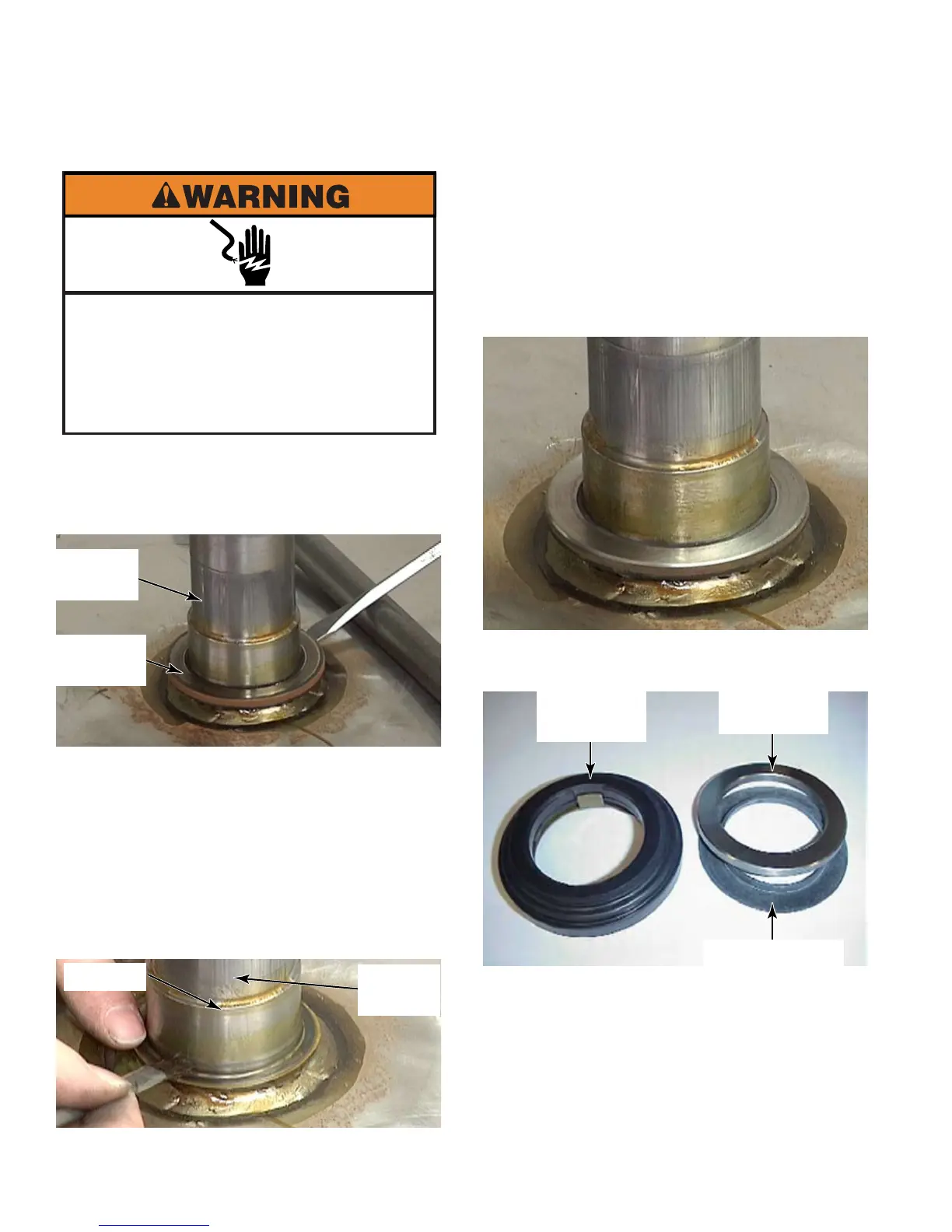

Use a flat blade screwdriver to pry the
counter-face ring up, working around the
entire ring, while removing it from the basket
shaft.
Clean the shaft with a Scotch-Brite™
pad. Make sure not to change the fitting
dimension.
Apply Scotch-Clad™ 776 to the basket shaft
between the bearing seat shoulder and
the counter-face ring seat. Avoid getting
any coating on either the bearing seat or
shoulder. Apply a thin layer and let it dry for
at least a half hour.
1.
2.
3.
REMOVE & REPLACE COUNTER-FACE RING
MFR18, 25, 30, 40, 50, 80
Apply a second thin layer of Scotch-Clad™
776 to the same area. Avoid applying any
to the bearing seat or shoulder.
Install the counter-face ring, rubber side
toward the basket, until the ring rests on the
counter-face ring seat of the basket shaft.
Let this dry for at least a half hour.
NOTE: Always replace both counter-face
ring and axial seal, not just one or the other.
4.
5.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
Basket
Shaft
Counter-
face Ring
Bearing
Seat
Shoulder
Counter-
face Ring
Rubber Sleeve
Axial Seal
