4-40
Remove the lower service panel
(See page 4-12).
Remove the drain valve wire connector
cover.
Disconnect three wire connectors under the
cover.
1.
2.
3.

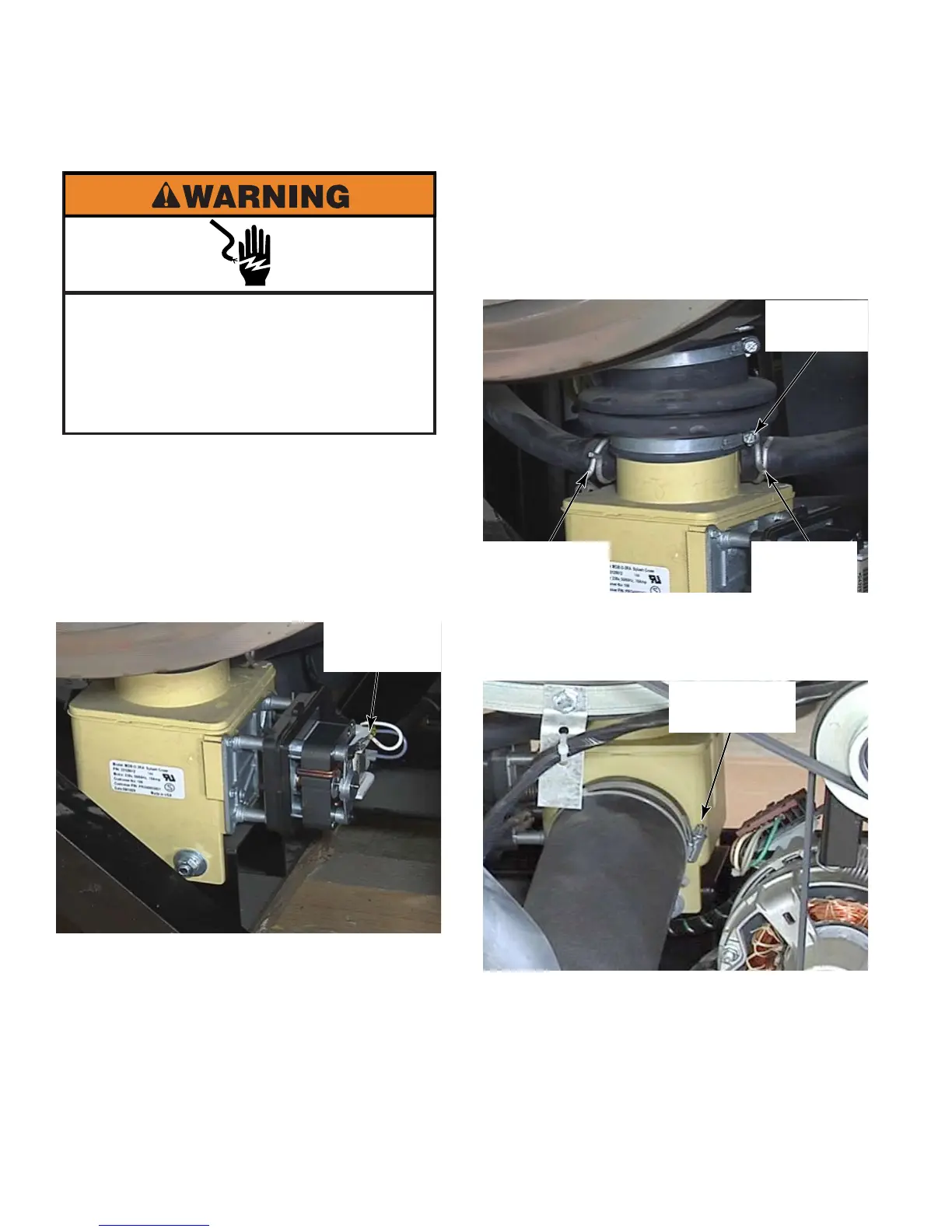

REMOVE DRAIN VALVE
Remove the air dome hose and fill hose
from the supply box by loosening the
clamps and pulling the hoses off.
Loosen the hose clamp that secures the
inlet hose on the top.
Reach around to the back of the drain valve
and loosen the hose clamp that secures the
outlet hose.
4.
5.
6.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
3 Wire
Connectors
Inlet Hose
Clamp
Air Dome
Hose Clamp
Fill Hose
Clamp
Outlet Hose
Clamp
To Next Page
