4-38
Remove power from washer and wait 10
minutes before attempting any further steps.
Before working on an inverter, follow the
procedure for testing inverters
See page 7-7). This must be done anytime an
inverter or brake resistor is being worked on.
Remove the screw from the front cover of
the inverter and remove the cover.
Remove another cover from the bottom of
the inverter.
Unplug the communication cable from the
front port.
1.
2.
3.

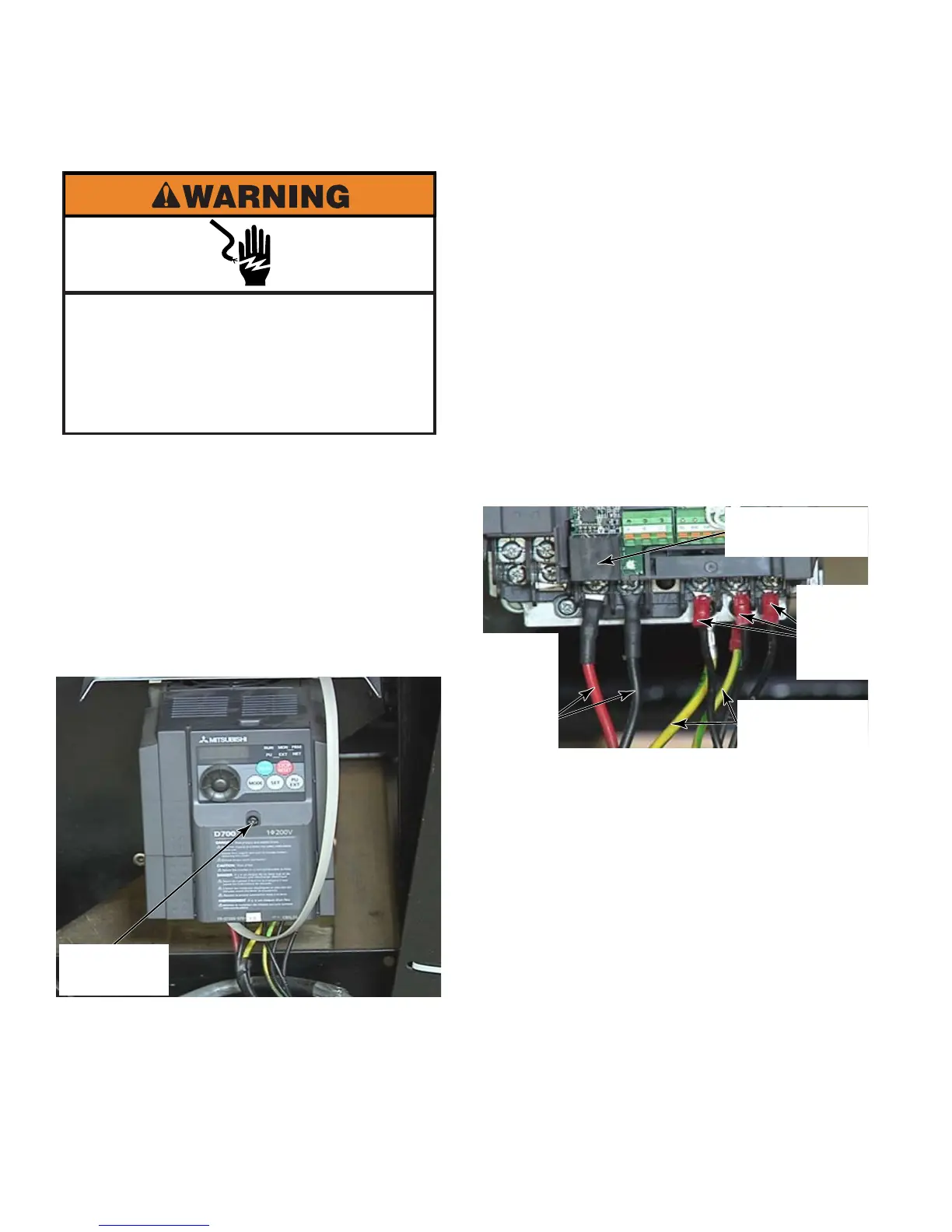

REMOVE MITSUBISHI D700 INVERTER
Remove the power supply wires. The order
of these wire connections is not important.
Remove the three wires that go to the
motor. The wires are marked 1, 2 and 3.
TECH TIP: Always note the order these
wires are connected. This is important
because if any two of the three wires are
reversed, the motor rotation will be opposite
what it should be.
NOTE: Do not attach a power supply wire
to any output terminal, because immediate
damage will occur upon applying voltage
and the inverter would be destroyed (No
warranty will apply).
Disconnect the ground wire connections on
the inverter.
To remove the inverter, loosen the bottom
flat blade screw, then remove the top two
flat blade screws.
Lift the inverter up and out.
4.
5.
6.
7.
8.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
Star Head
Screw
Communication
Cable Port
2 Power
Supply
Wires
(Red/
Black)
Power
Out To
Motor
(Black)
Ground Wires
(Yellow/Green)
To Next Page
