4-1
COMPONENT ACCESS
Open the chemical dispenser lid.
Push the cup assembly toward the front.
Raise it and remove from the back edge.
Remove the siphon cap by sliding it up and
out of the cup assembly.
Thoroughly clean both parts and make sure
there are no obstructions on the underside.
1.
2.
3.
4.
5.
REMOVE SOFTENER COMPARTMENT FUNNEL AND SIPHON
When reinserting the siphon cap, realign the
fins on the siphon cap with the grooves in
the cup assembly.
To reinstall the cup assembly slide the
siphon cap end of the assembly into the
chemical dispenser toward the front of the
washer.
Push the back of the assembly down
and then all the way to the back of the
compartment.
Push the front end down into place.
6.
7.
8.
9.

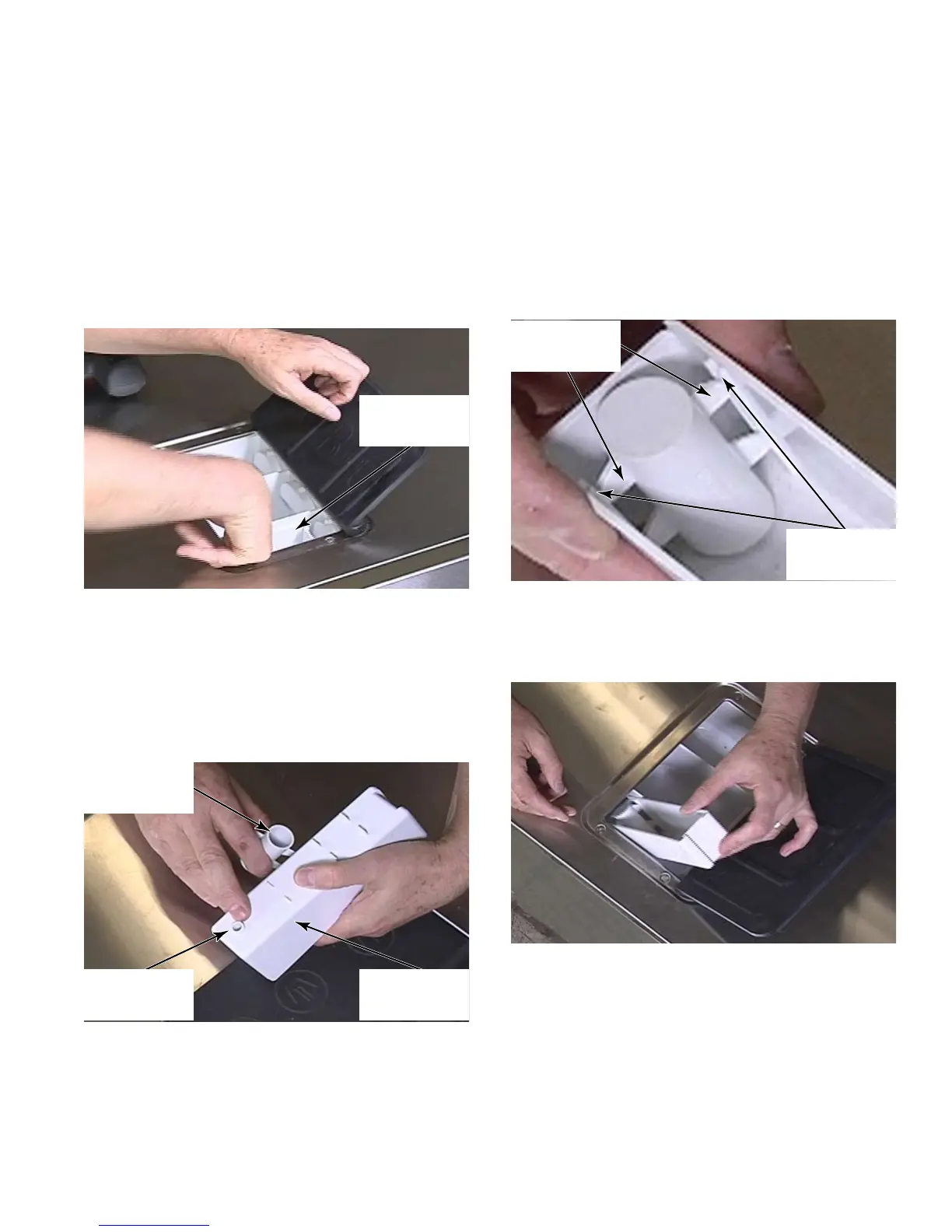

Cup
Assembly
Grooves
In Cup
Siphon
Cap Fins
Siphon
Cap
Cup
Assembly
Funnel
Opening
