4-26
Raise the top of the washer (See page 4-2).
Before removing any hoses, mark the
dispenser and hoses to make sure they are
reinstalled on the correct inlets.
Loosen the clamps and remove the six inlet
hoses from the dispenser.
1.
2.
3.

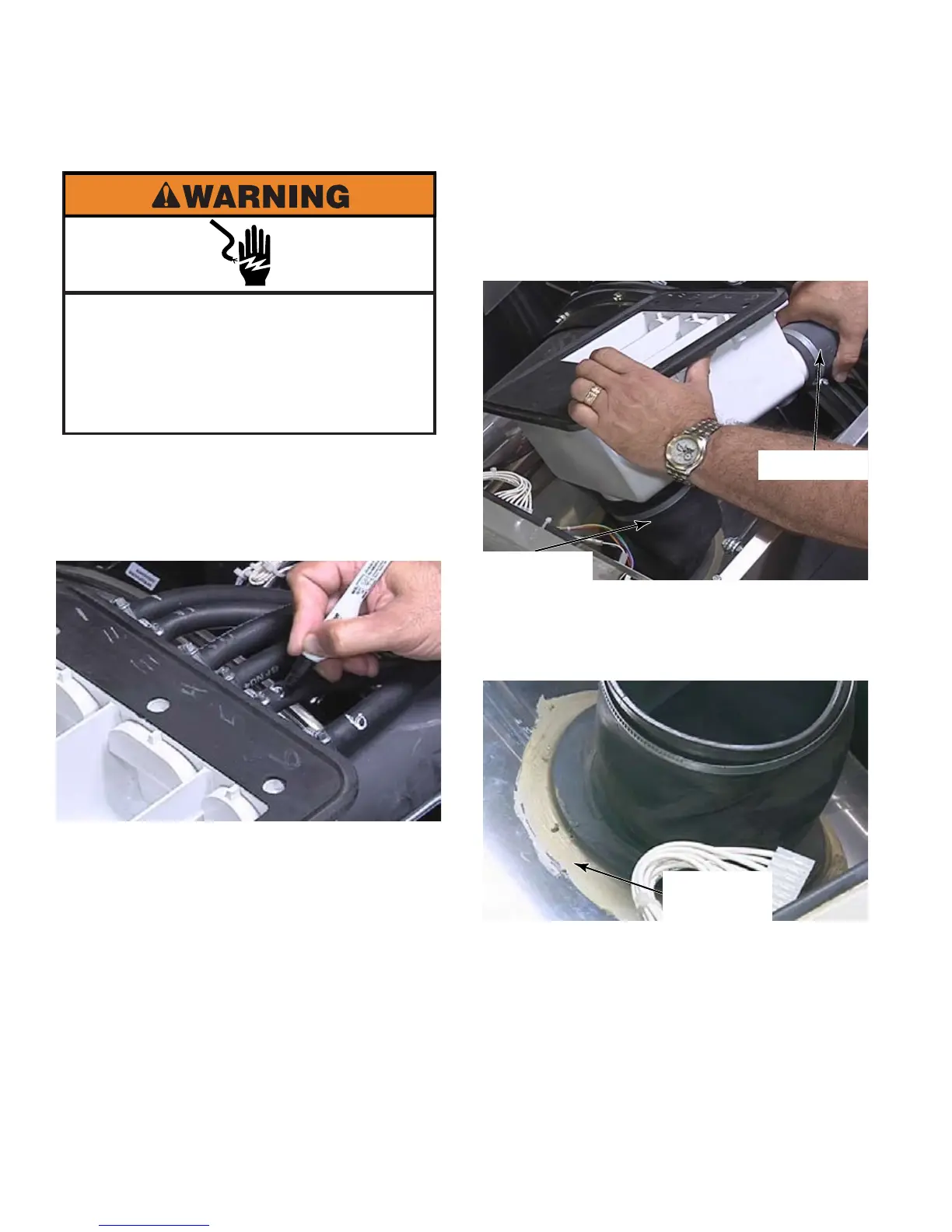

REMOVE CHEMICAL DISPENSER
Loosen the clamp at the back of the
dispenser to remove the vent tube.
Loosen the clamp under the dispenser to
remove the outlet hose.
If the tub to dispenser outlet hose has to be
changed on the MFR18 and the MFR25,
silicone sealant must be used to glue the
dispenser outlet hose to the tub .
The dispenser lid is secured to the washer
top with rivet screws that are double nutted.
Remove the nuts from the three rivet screws
to remove the lid.
The retaining bar can then be removed and
the rubber flap can be replaced if needed.
4.
5.
6.
7.
8.
9.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
Vent Tube
Outlet Tube
Silicone
Sealant
To Next Page
