Maytag MFR40PD - Remove Idler Assembly, Pulley and Bearing - MFR25

4-31

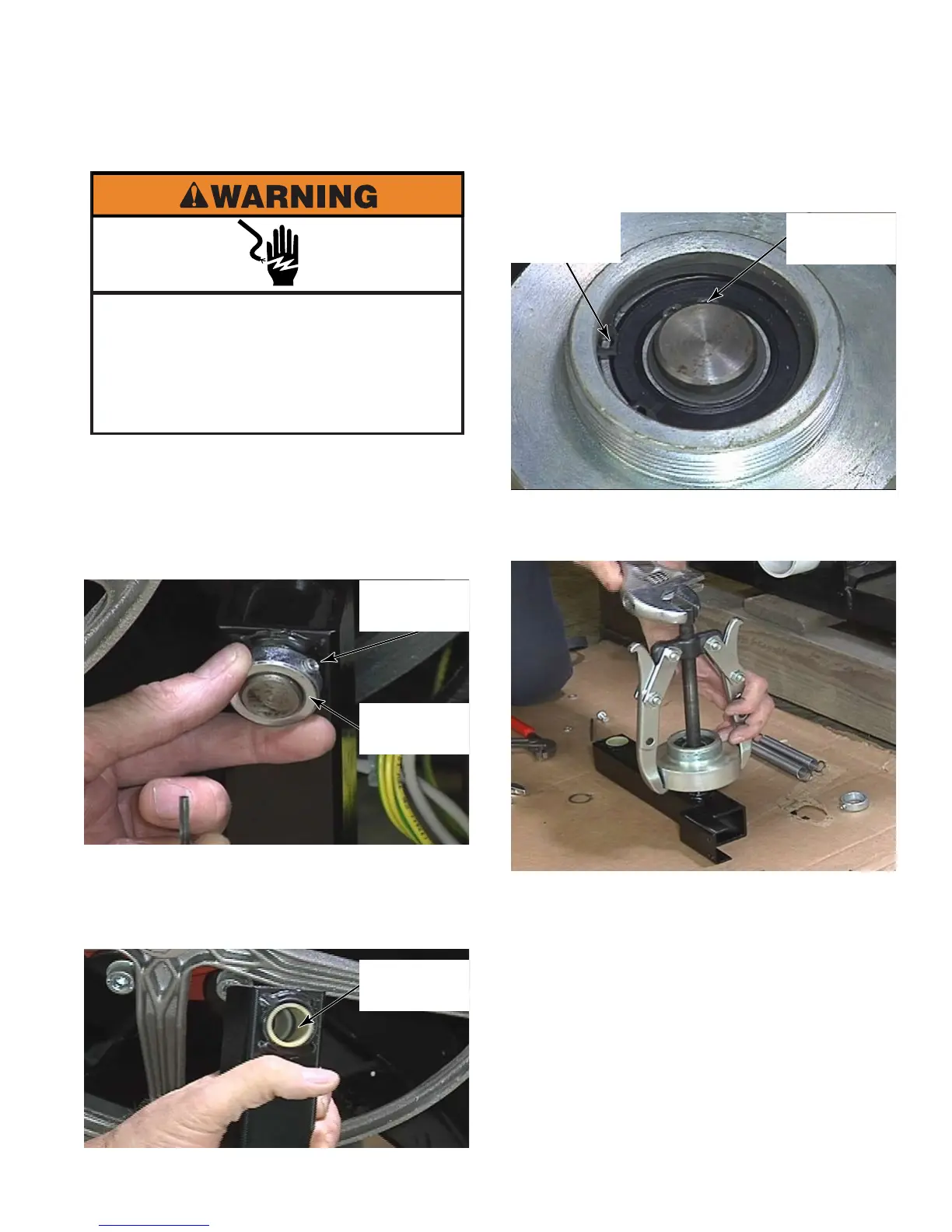

Remove the belts and springs
(See page 4-29).
Use a 3mm hex key to loosen the set screw
on the collar that secures the idler assembly
to the shaft.
Pull the idler assembly off the shaft.
There is a bushing in both ends of the hole
that the shaft goes in.
1.
2.
3.
4.
REMOVE IDLER ASSEMBLY, PULLEY AND BEARING - MFR25
To remove the idler pulley, use a snap ring
tool to remove the small retainer ring.
Use a gear puller and wrench to pull the
idler pulley off.
To remove the bearing inside the idler
pulley, remove the large snap ring and
remove the bearing (See photo at top of
column).
5.
6.
7.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
3mm Hex
Set Screw
Shaft Collar
Bushing In
Both Ends
Pulley
Snap Ring
Bearing
Snap ring
