4-24
NOTE: Depending on model and year of
production, the front panel may or may not
have a door lock access panel. If door lock
access panel is available, front panel will not
need to be removed. Removal of the door
lock access panel allows access to door lock
mounting bolts. When door lock access panel
is not available, follow the procedure below.
Remove front panel (See page 4-19).
Remove door lock (See page 4-23).

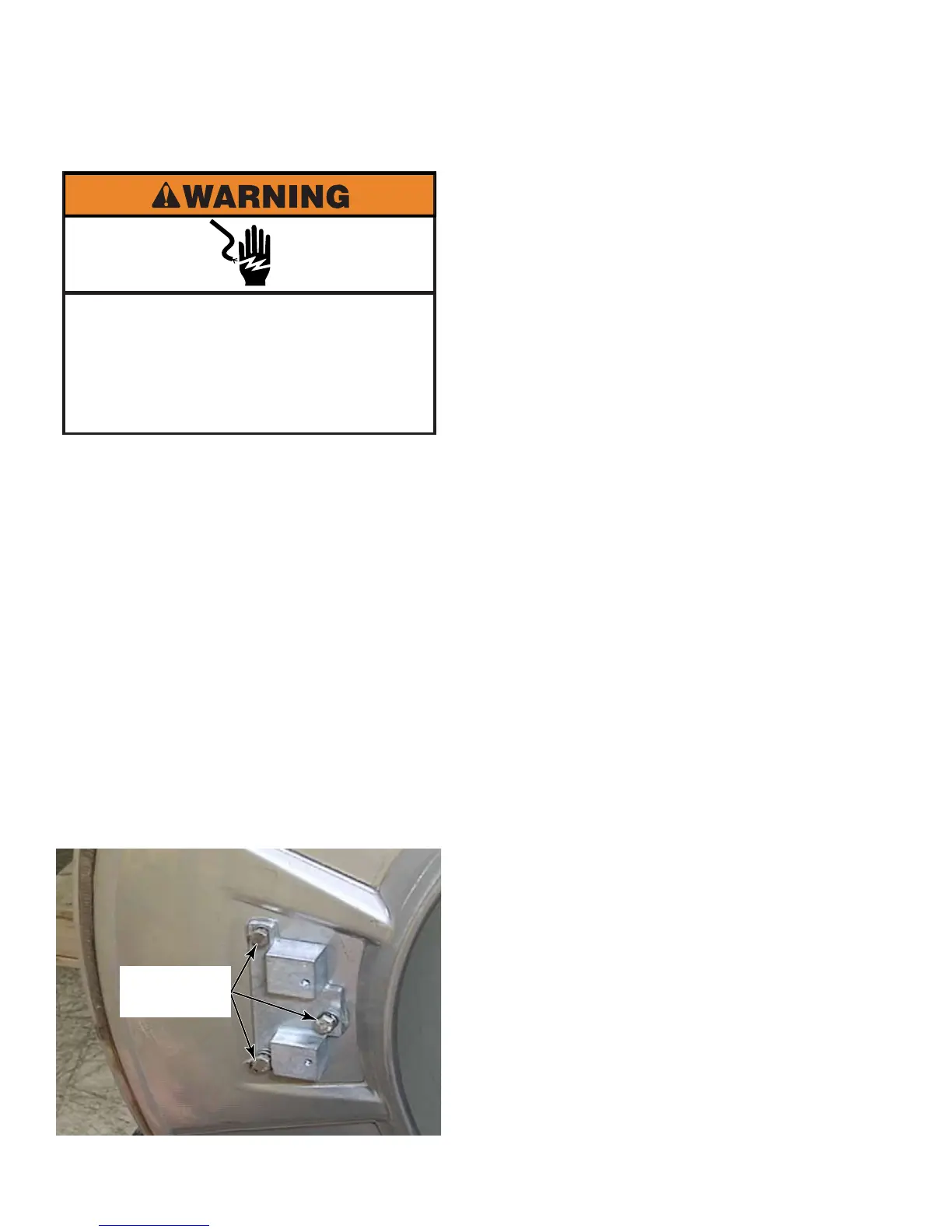

To Remove the door lock mounting block,
remove three 10mm bolts, each with a flat
washer and a lock washer, that secure the
door lock mounting block to the front of the
tub.
1.
2.
3.
REMOVE DOOR LOCK
MOUNTING BLOCK
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
Three 10mm
Bolts
To Next Page
