1. Control panel
2. Door handle
3. Service panel
4. Air relieve
5. Liquid soap hose passing
6. Serial Plate
7. Steam connection
8. Drain connection
9. Earth connection
10. Hot water connection
11. Cold soft water connection
12. Payment device or emergency stop
13. Fuses
14. Location incoming supply connector
15. Coin vault (only coin models)
16. Passing electrical cable of machine
17. Passing electrical liquid soap signals
18. Soap Dispenser
19. Liquid soap relay board box

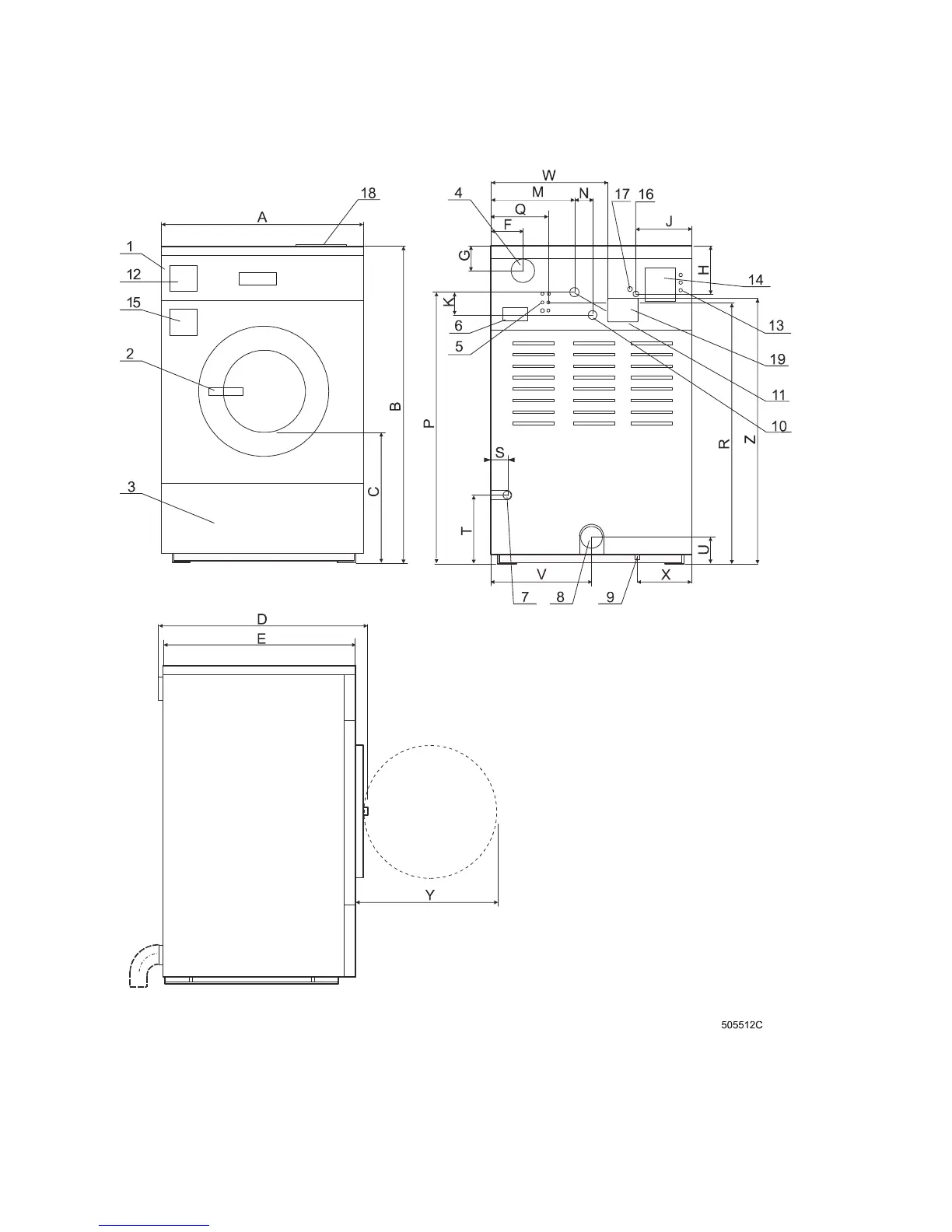

Fig.1.
