5-4
Raise the top of the washer (See page 4-2).
Disconnect the dispenser to tub hose by
loosening the hose clamp and pulling the
hose off the bottom of the dispenser.
Clip the wire ties that secure the hose from
the air dome to the water level control on
the control board. Pull the hose from the
control board.
1.
2.
3.

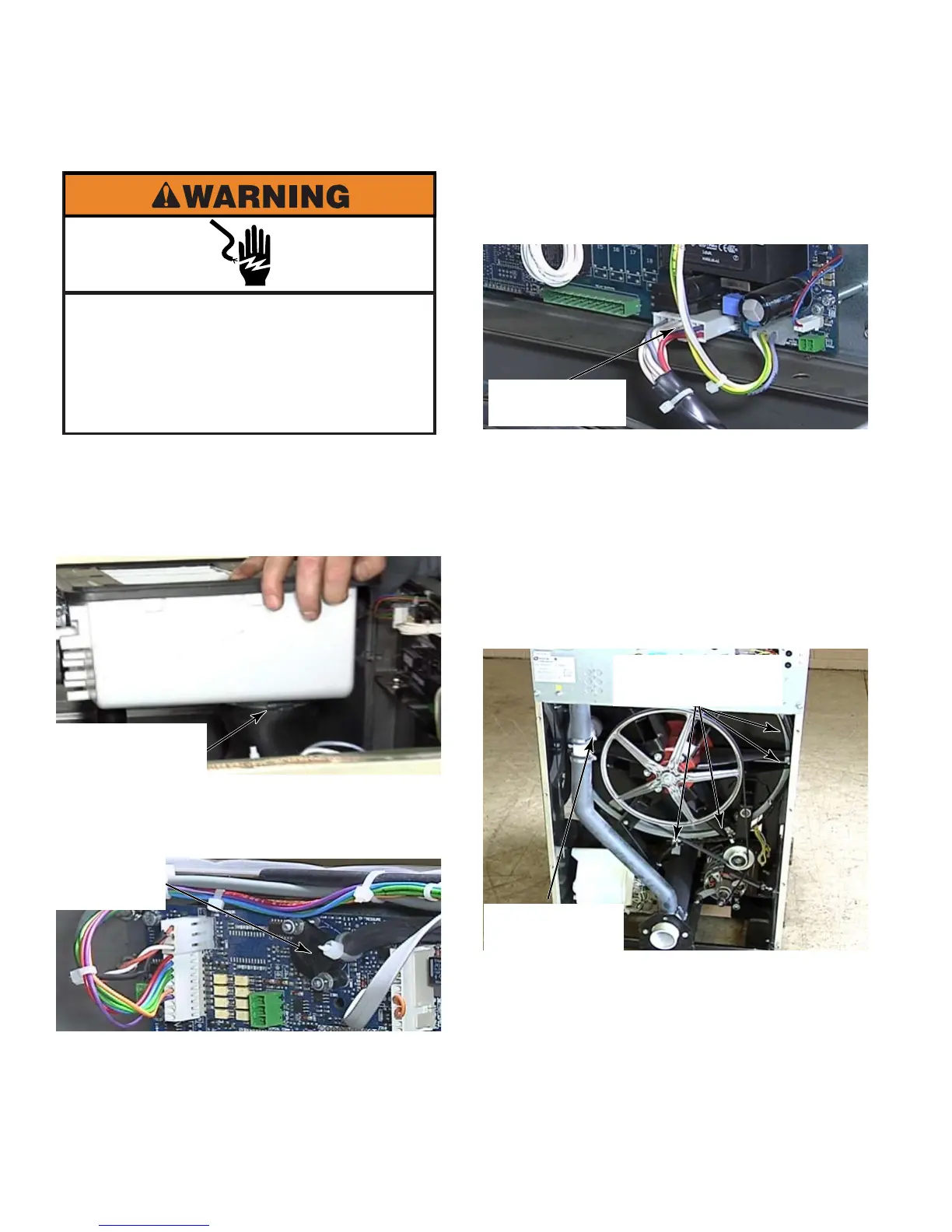

REMOVE CABINET - MFR18 & 25
Unplug door lock wire harness at DL1 by
squeezing the locking tab and pulling it off
the control board. Cut wire ties that secure
door lock cable to the front panel.
Remove the back panel (See page 4-28).
Remove the temperature sensor at the back
of the tub (See page 4-42).
Clip the wire ties that secure the motor wire
harness to the back of the tub.
Disconnect the vent tube connected to the
overflow.
Remove the lower service panel
(See page 4-12).
4.
5.
6.
7.
8.
9.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
Dispenser to Tub
Hose Clamp
Water Level
Control
Door Lock Wire
Harness At DL1
Wire Ties For Motor
Wire Harness
Vent Tube
Clamp
To Next Page
