4-29
Remove the back panel (See page 4-28).
Remove the large belt by rolling it off the
basket pulley.
Remove the small belt the same way.
To reinstall the small belt, loosen the motor
so that it can move up slightly to make
reinstallation of the small belt easier.
Reinstall the small belt on the largest
diameter of the idler pulley and around the
motor shaft.
Reattach the two springs.
1.
2.
3.
4.
5.
6.
REMOVE AND REINSTALL BELTS - MFR25
Reinstall the large belt on the basket pulley
and around the smaller front diameter
portion of the idler pulley.
Push down on the motor to adjust the
tension on the belts.
Tighten the bolt on the motor.
7.
8.
9.

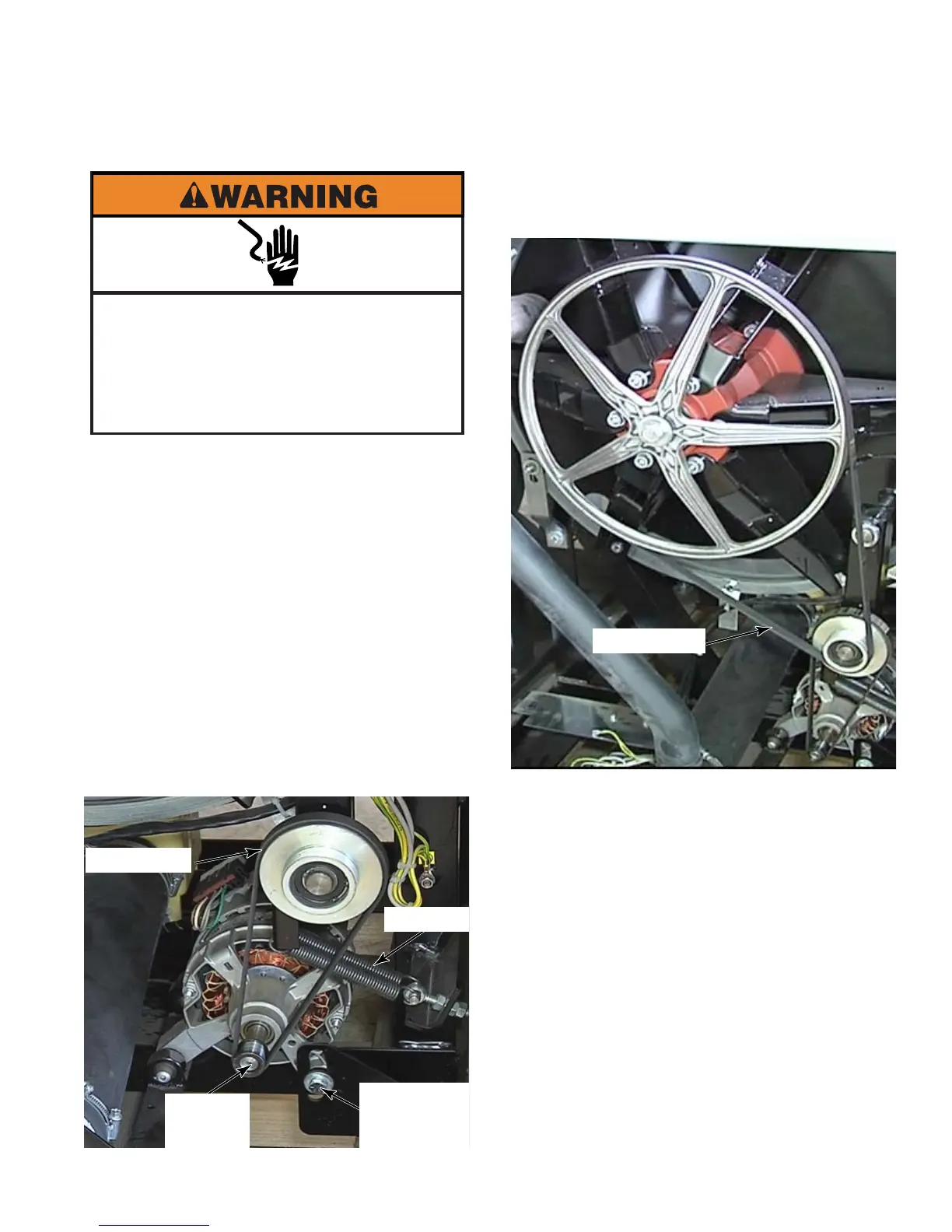

Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
Motor
Tension
Adjustment
Springs
Motor
Shaft
Small Belt
Large Belt
