Maytag MFR40PD - Remove the Basket - MFR40 & 50

6-24

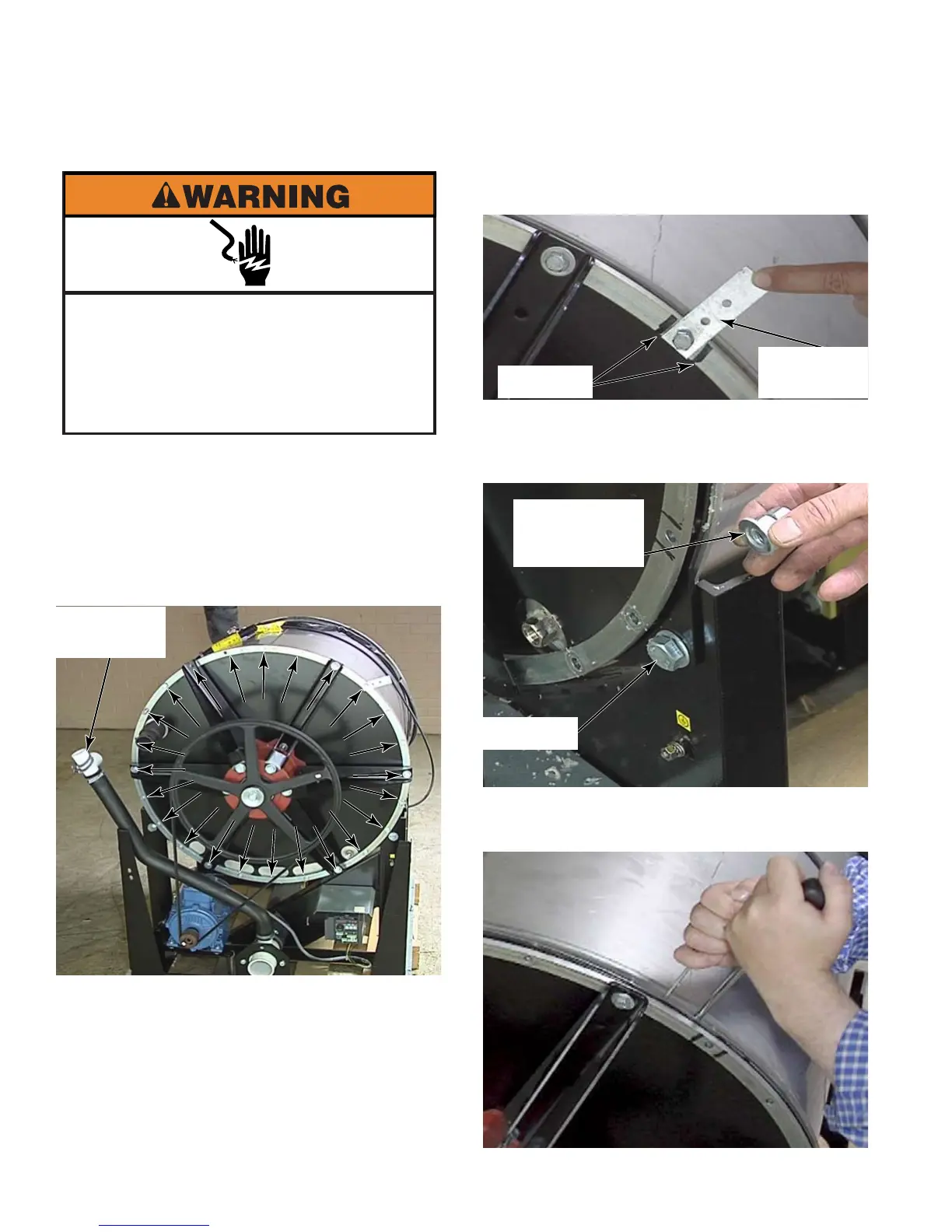

Remove the cabinet (See page 5-1).
Disconnect the overflow tube at the “T”
fitting.
Remove the 24 nuts and bolts connecting
the back-plate to the outer tub.
1.
2.
3.
REMOVE THE BASKET - MFR40 & 50
Mark the bolt holes that have tabs on them
for wiring harness wire ties.
Remove the bolt from each side that
secures the back of the tub to the tub
support with double nuts and a washer.
Spread the rear ring using two screwdrivers
to release the silicone.
4.
5.
6.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
Overow
“T” Fitting
Wire Tie Tab
Marks
Bolt
Double Nuts
& Washer
