5-1
Raise the top of the washer (See page 4-2).
Remove the lower service panel
(See page 4-12).
Clip the wire ties that secure the pressure
hose from the air dome to the water level
control on the control board. Pull the hose
from the control board.
Unplug wiring harness to the door lock by
squeezing the locking tab and pulling it off
the control board.
1.
2.
3.
4.
REMOVE CABINET - MFR30 - 80
Remove the temperature sensor at the back
of the tub (See page 4-42).
If the inverter is an E500 series, unplug the
communication cable from the front of the
inverter. For D700 model inverters, remove
the cover plate from the front of the inverter.
Press the locking tab and remove the
communication cable (See page 7-7).
Use a star head screwdriver to loosen the
red and black power supply wires to the
inverter and remove them.
Remove the ground wire coming from wire
harness to the inverter, by removing the nut
that secures two ground wires to the tub
support.
Reach under tub and disconnect the ground
wire that connects to the front of the tub.
5.
6.
7.
8.
9.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
Water Level
Control
Door Lock
Wire Harness
Ground
Wires Nut
Ground Wire
To Tub

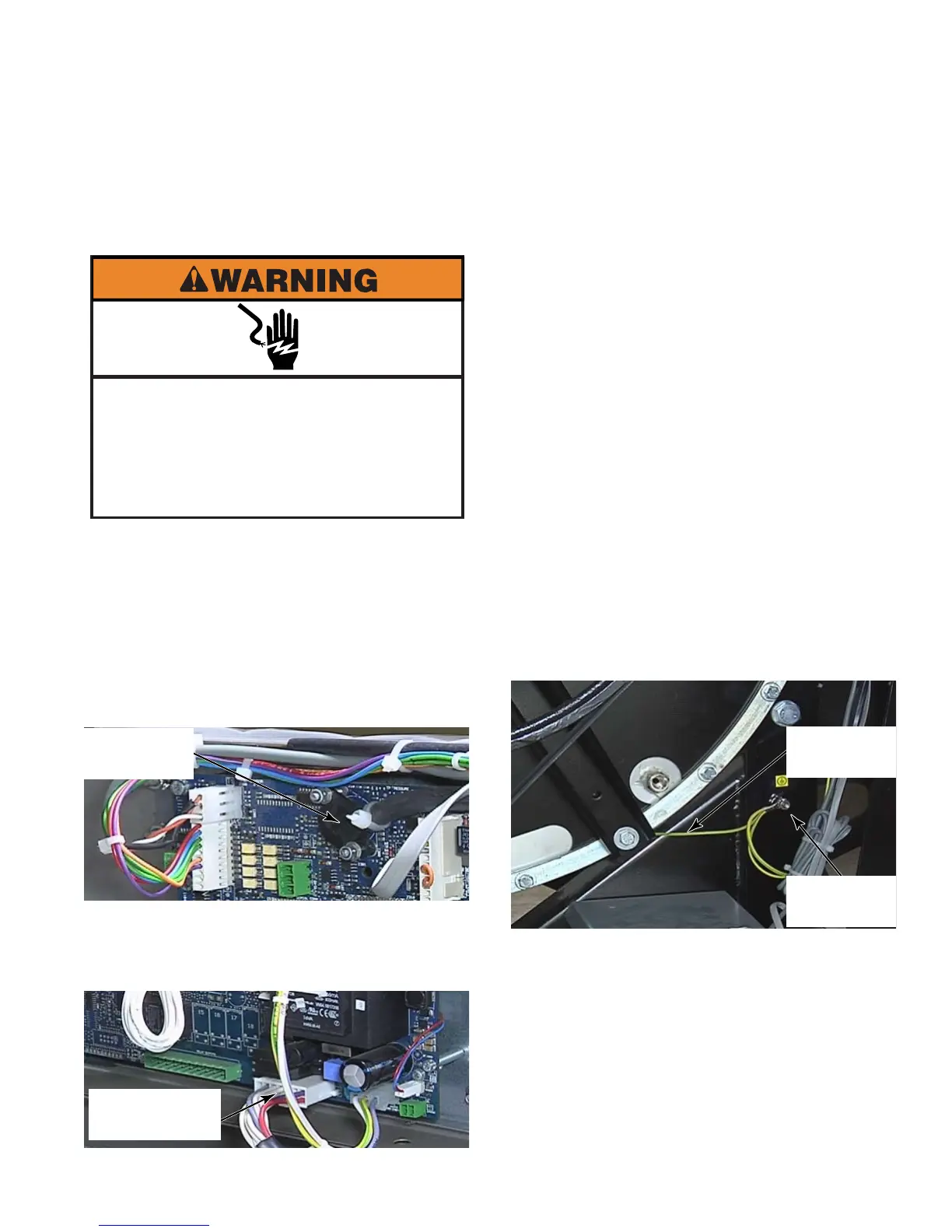

CABINET REMOVAL
To Next Page
