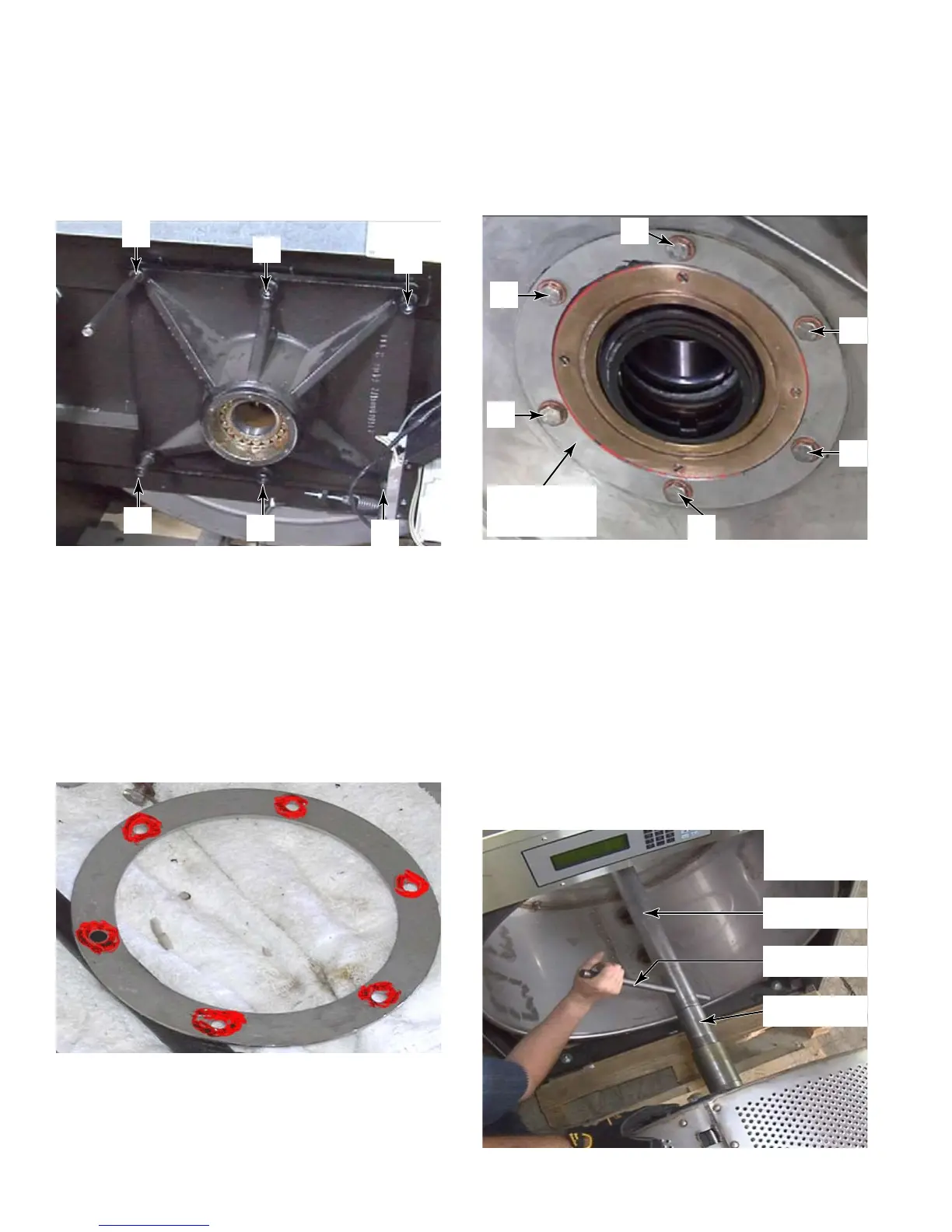

Tighten the bolts around the center ring by
working on opposing sides.
Install the counter-face ring on the basket
shaft (See page 6-8).
Position the basket in front of the washer,
at the same height as the tub, with the
basket shaft pointed into the washer.
Make sure anything near the bearings is
clean and free of dust prior to reassembly,
including the tools being used.
Install the sleeve of the bar set-tool,
#518862, on the end of the basket shaft.
46.
47.
48.
49.
50.
Work from corner to corner reinstalling
bolts. Put them in just snug, not tight.
When 6 bolts are snug, begin tightening
them by working on opposing sides.
The final process must attain a minimum
torque of 110 foot pounds or 150 Newton
meters with a standard torque wrench.
Use Loctite® 5203™ around the bolt holes
on the back side of the center ring before
reassembly.
42.
43.
44.
45.
1
5
3
2
4
6
1
5
3
2
4
6
Center Ring
Bar Set Tool
#518862
Sleeve
Guide Rod
Lever Bar
