Page 114

Appendix| EtherCAT Documentation

capaNCDT 6200

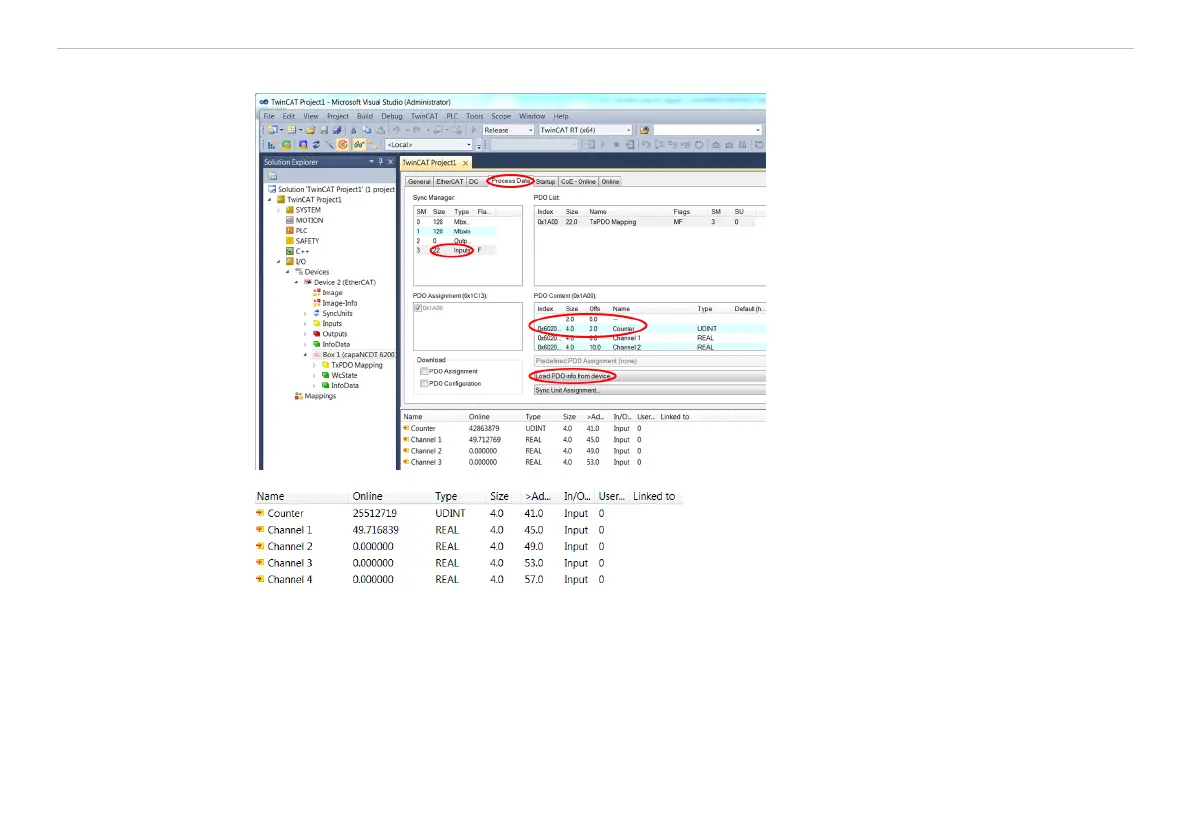

On the Process data side the PDO allocations can be read from the device.

The selected measuring values are transmitted as process data in the status SAFEOP and OP.
