Installation and Assembly
capaNCDT 6200

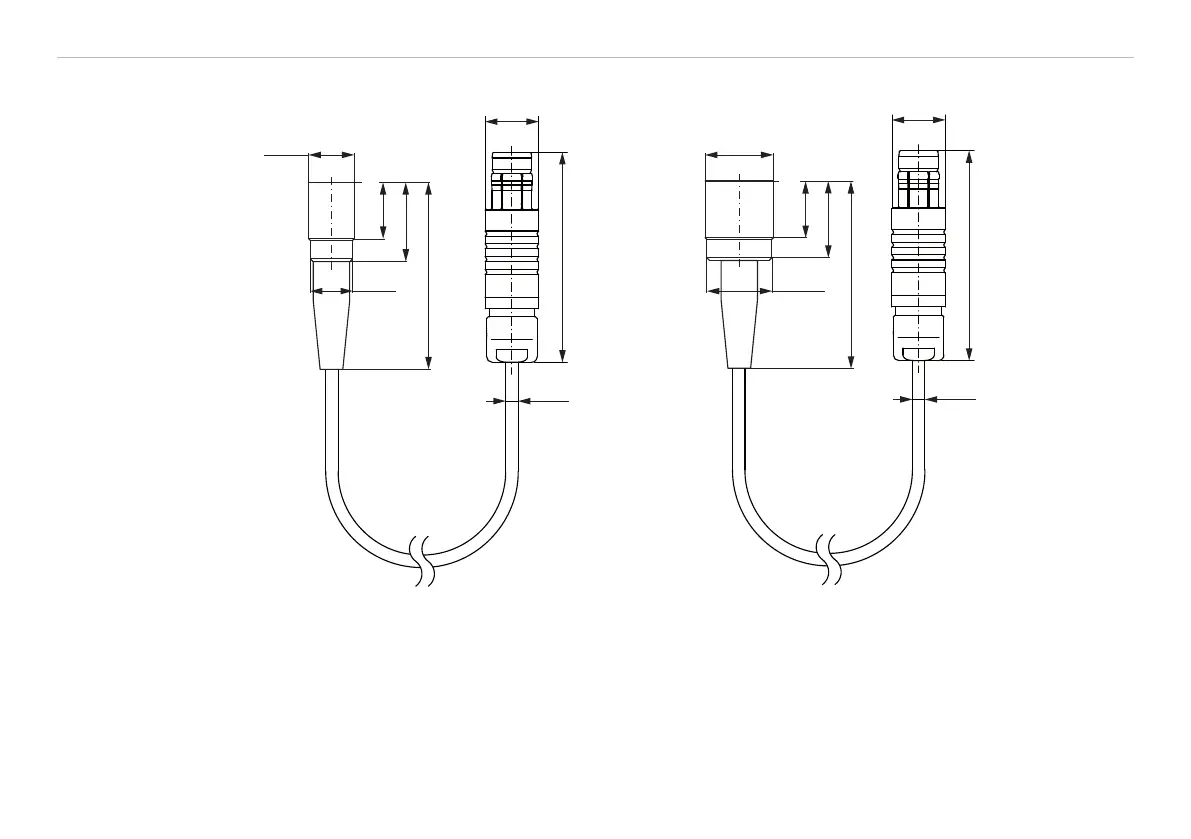

ø12g6 (.473 dia.)
CSH1-CAmx,
CSH1.2-CAmx
14
(.39)
33
(1.30)
ø11.5
(.45 dia.)
10 (.39)
ø
2.2 (.09 dia.)
ca. 37 (1.46)
appr. 9.4 (.37)
ø8g6 (.315 dia.)
CSH02-CAmx,
CSH05-CAmx
ø7.5
(.30 dia.)
14
(.39)
33
(1.30)
10 (.39)
ø
2.2 (.09 dia.)
ca. 37 (1.46)
appr. 9.4 (.37)
Dimensions in mm (inches), not to scale
