Page 52

Ethernet Interface

capaNCDT 6200

Define the following address in the properties of the LAN connection:

IP address: 169.254.168.1

Subnet mask: 255.255.0.0

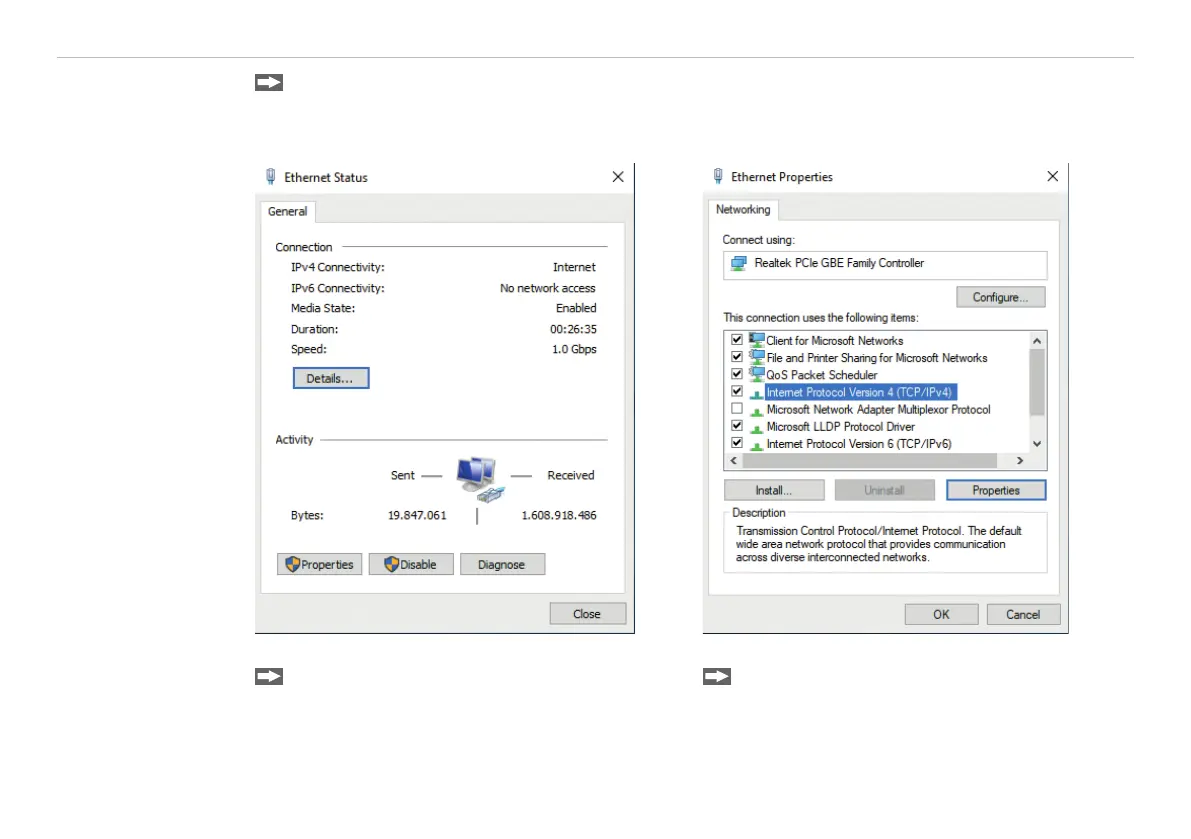

Select Properties. Select Internet Protocol (TCP/IP) >

Properties.
