Appendix| Accessories, Service
capaNCDT 6200
UHV/B
25 (.98)
SW11
M9x0.5
1.75
(.07)
ø13.50h6

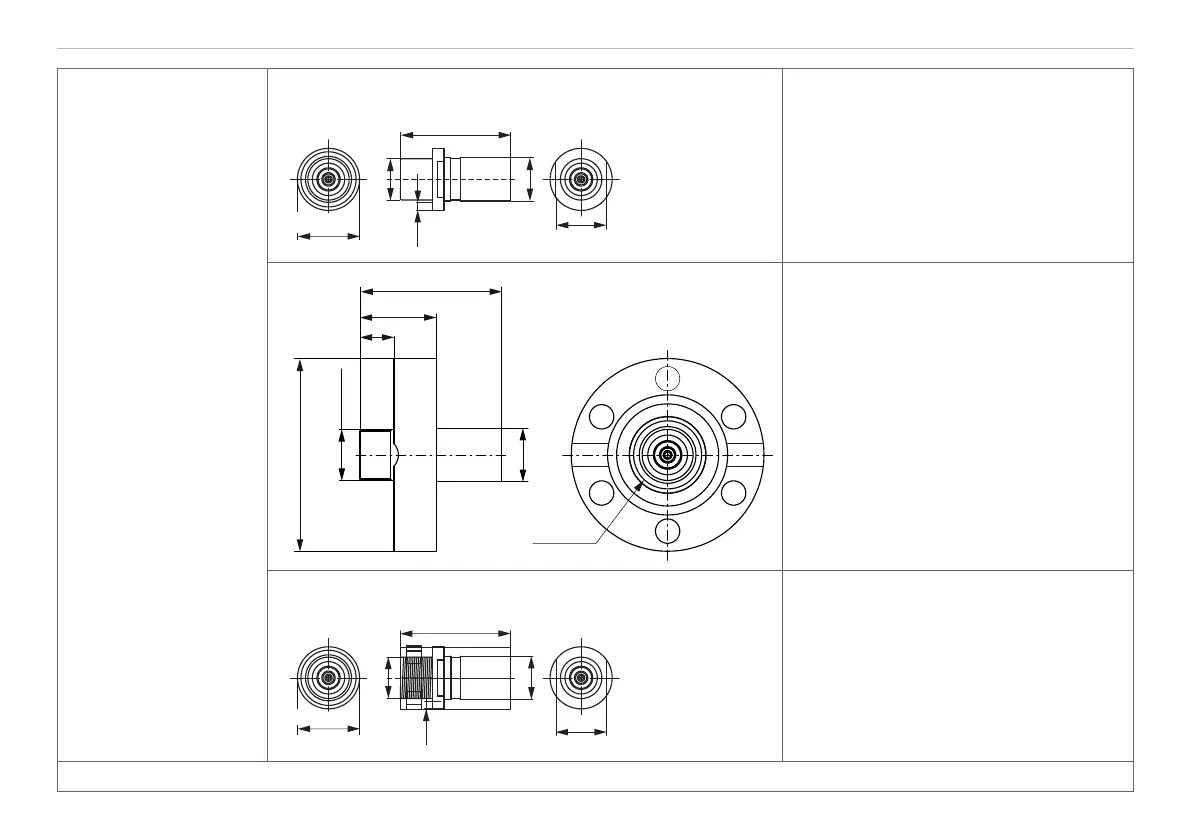

Vacuum feed through triax weldable
Max. leak rate 1x10e-
9
mbar · l s
-1
Compatible with connector type B
M9x0.5
ø9.4
(.37)
ø34 (1.34)
(Standard flange CF16)
6
(.24)
13.5 (.53)
Knit line
Vacuum feed through triax with CF16
flange
Max. leak rate 1x10e-9 mbar · l s
-1
Compatible with connector type B
25 (.98)
SW11
M9x0.5
1.75
(.07)
ø13.50h6
Vacuum feed through triax screwable
Max. leak rate 1x10e-9 mbar · l s
-1
Compatible with connector type B
All vacuum feed throughs are compatible to the connectors type B, see 4.3.
