20 Installation
_________________________________________________________________________________________
_________________________________________________________________________________________
Microplex logiJET TC8 Edition 1.2
Printer interior view:
Front paper
guide
e
Rear printhead
(Print unit 1)
Front
platen roller
Lower sensor
(Reflex sensor)
Rear
platen roller
Upper sensor
(Transparent
sensor)
Transparent
sensor guide
Front printhead
(Print unit 2)
Tear bar
Rear paper
guide
e

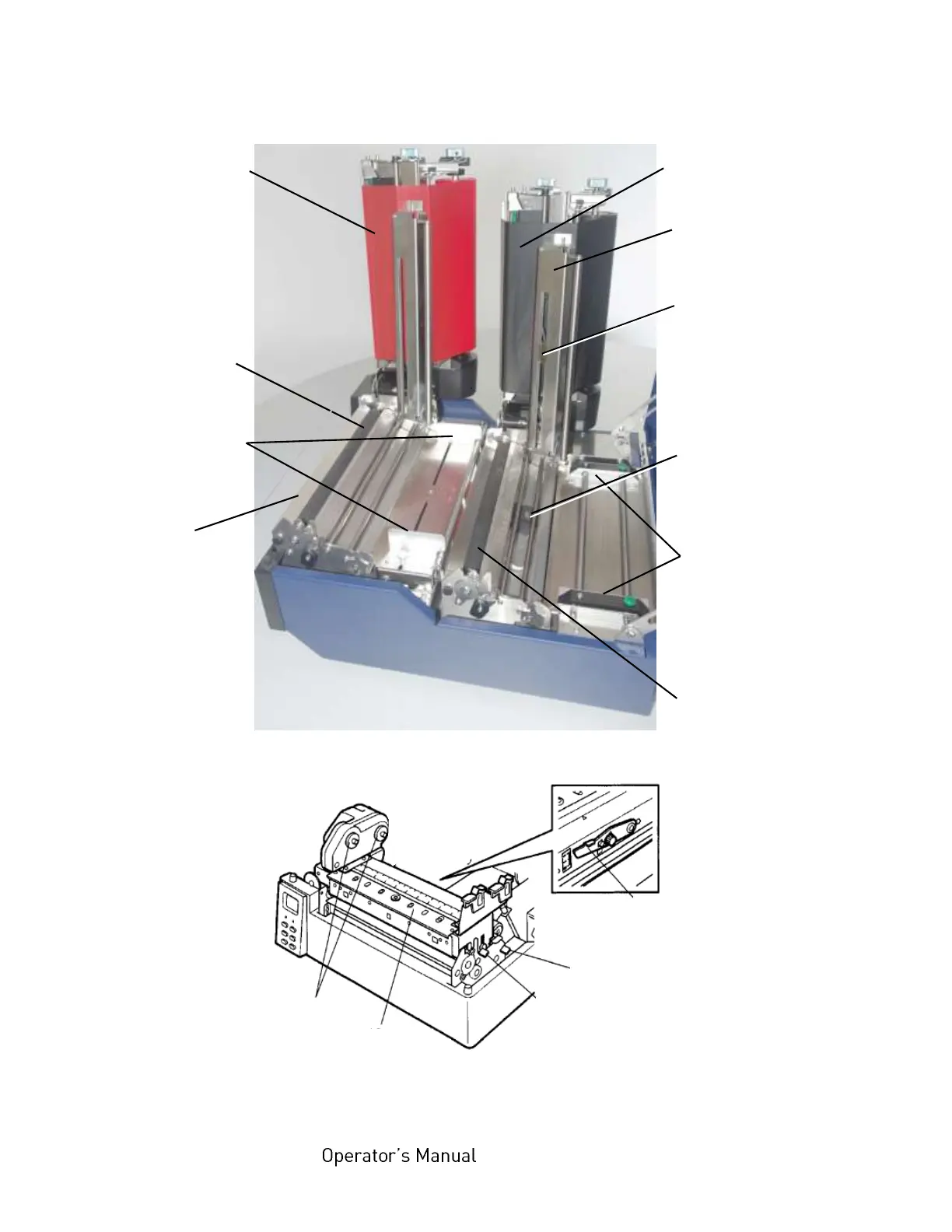

Fig. 2.4.d Printer opened
Ribbon mandrel
holder
Transparent sensor guide
release lever
Printhead release
lever
e
Ribbon
guide plate
Printhead adjustment lever
Fig. 2.4.e Details at the front print unit (and the rear print unit as well)
