Microplex LOGIJET TC8 - Avoiding Ribbon Slack and Wrinkles

Operator Maintenance 165
__________________________________________________________________________________________
_________________________________________________________________________________________
Microplex logiJET TC8 Edition 1.2
8.2. Avoiding Ribbon Slack and Wrinkles
If the ribbon wrinkles, the ribbon tension on either side of the
ribbon is not even.
Remove slack on the ribbon in the following order:
1. Turn the printer OFF LINE.
2. ition.
3. Check both print units: is the ribbon wrinkled, is the ribbon
tension on either side of the ribbon not even?
4. Unlock the printhead assembly by pushing the release lever.

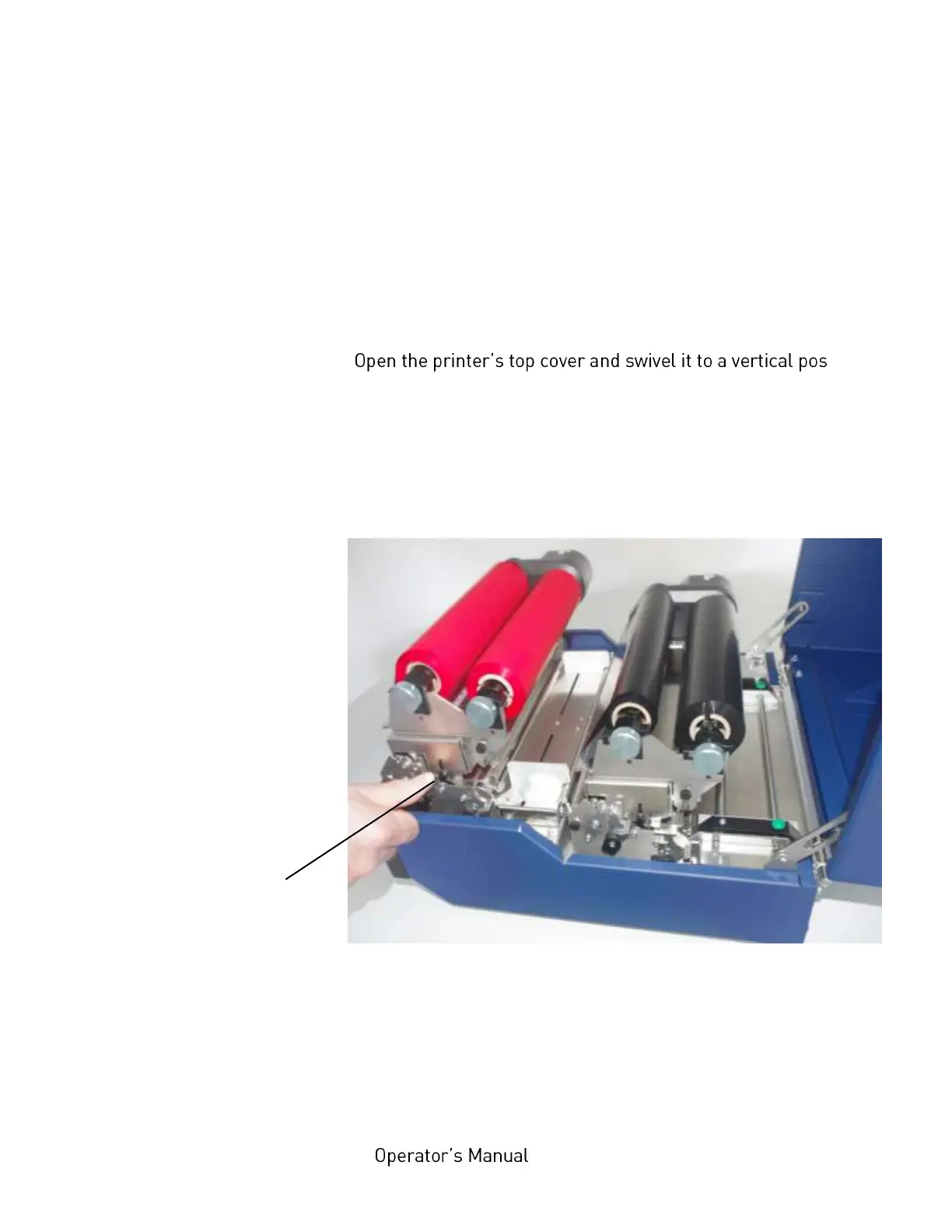

Fig. 8.2.a Releasing the front printhead assembly

Printhead assembly
release lever
