A7™ Operating Instructions 046-004667-00 4 - 9
Preoperative Tests Leak and Compliance Tests
2. Follow the instructions on the screen:

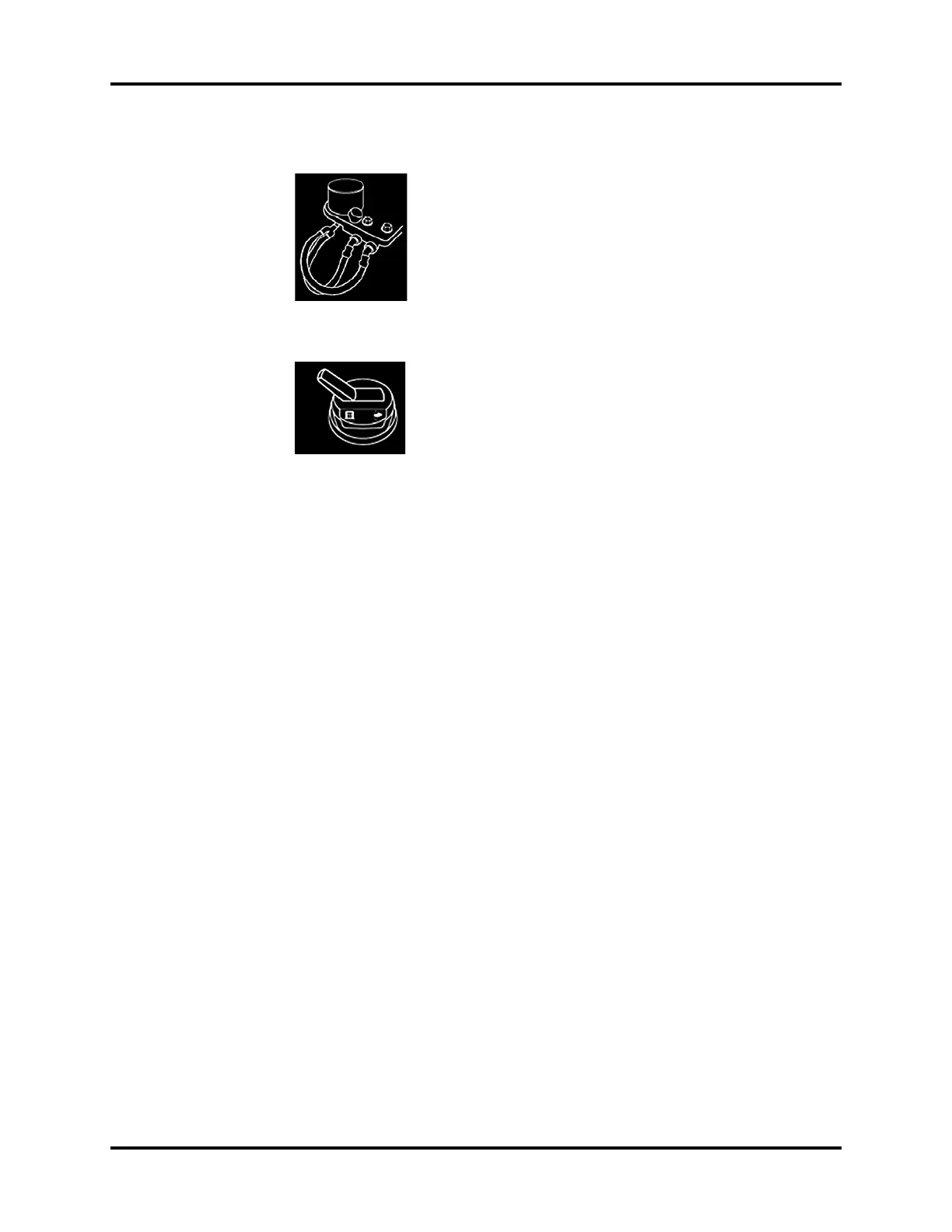

1. Seal the Y-piece:
2. Ensure that the sample line port of the breathing circuit is occluded.
3. Install the manual bag.
4. Set the Auto/Manual switch to the Auto position:
5. Press the O
2
flush button to completely fill the bellows.
6. Select Continue to proceed with the Automatic Circuit Leak Test.
NOTE: The Continue button can be selected only when the Auto/Manual
switch is set to the Auto position and when no fresh gas is detected.
3. Compare the test results with the information in TABLE 4-3, “Automatic Circuit Leak and
Compliance Test Results,” on page 4-10, and proceed accordingly.

Mindray A7 Specifications

General

Type	Anesthesia Workstation
Brand	Mindray
Model	A7
Display	15-inch color touchscreen
Oxygen Flush	Yes
Gas Inlets	O2, N2O, Air
Ventilation Modes	SIMV, PSV
Breathing System	Integrated
Gas Monitoring	O2, CO2, N2O
Monitoring Parameters	FiO2
CO2 Monitoring	Mainstream or Sidestream
Power Supply	100-240 V, 50/60 Hz
