Mindray A7 Operating Instructions

A7™ Operating Instructions 046-004667-00 4 - 17

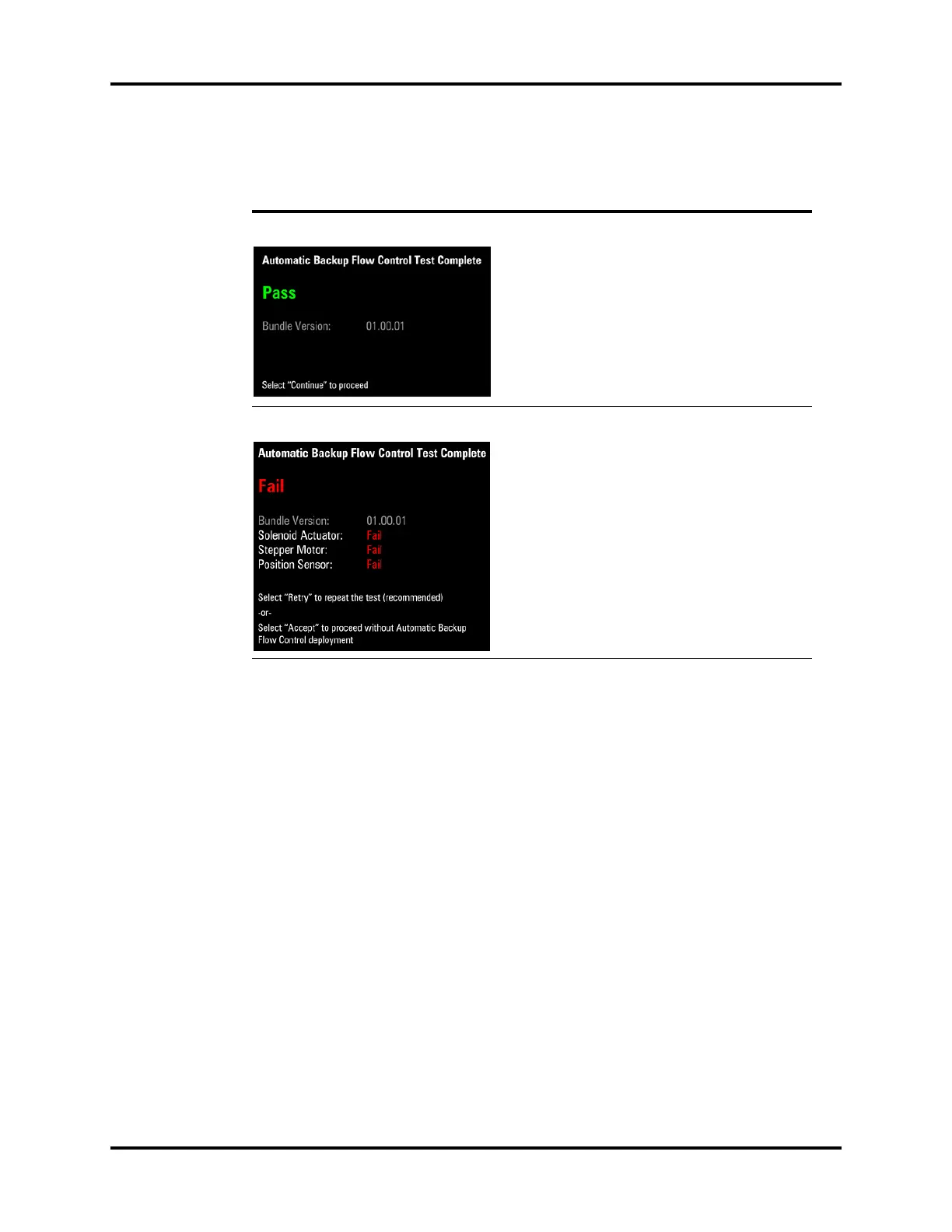

Preoperative Tests Automatic Backup Flow Control Test
3. Compare the test results with the information in TABLE 4-5, “Automatic Backup Flow Control
Test,” on page 4-17, and proceed accordingly.
RESULTS COMMENTS/OPTIONS
Pass
Example:
Automatic Backup Flow Control Test passed.
Select Continue to proceed to the main screen.
Fail
Example:
Automatic Backup Flow Control Test failed.
Select Retry to repeat the test.
or
Select Accept to proceed without Automatic Backup Flow
Control deployment.
TABLE 4-5 Automatic Backup Flow Control Test

Mindray A7 Specifications

General

Type	Anesthesia Workstation
Brand	Mindray
Model	A7
Display	15-inch color touchscreen
Oxygen Flush	Yes
Gas Inlets	O2, N2O, Air
Ventilation Modes	SIMV, PSV
Breathing System	Integrated
Gas Monitoring	O2, CO2, N2O
Monitoring Parameters	FiO2
CO2 Monitoring	Mainstream or Sidestream
Power Supply	100-240 V, 50/60 Hz
