Operations Parameter Monitoring (Spirometry)
Pressure - Flow Spirometry Loop

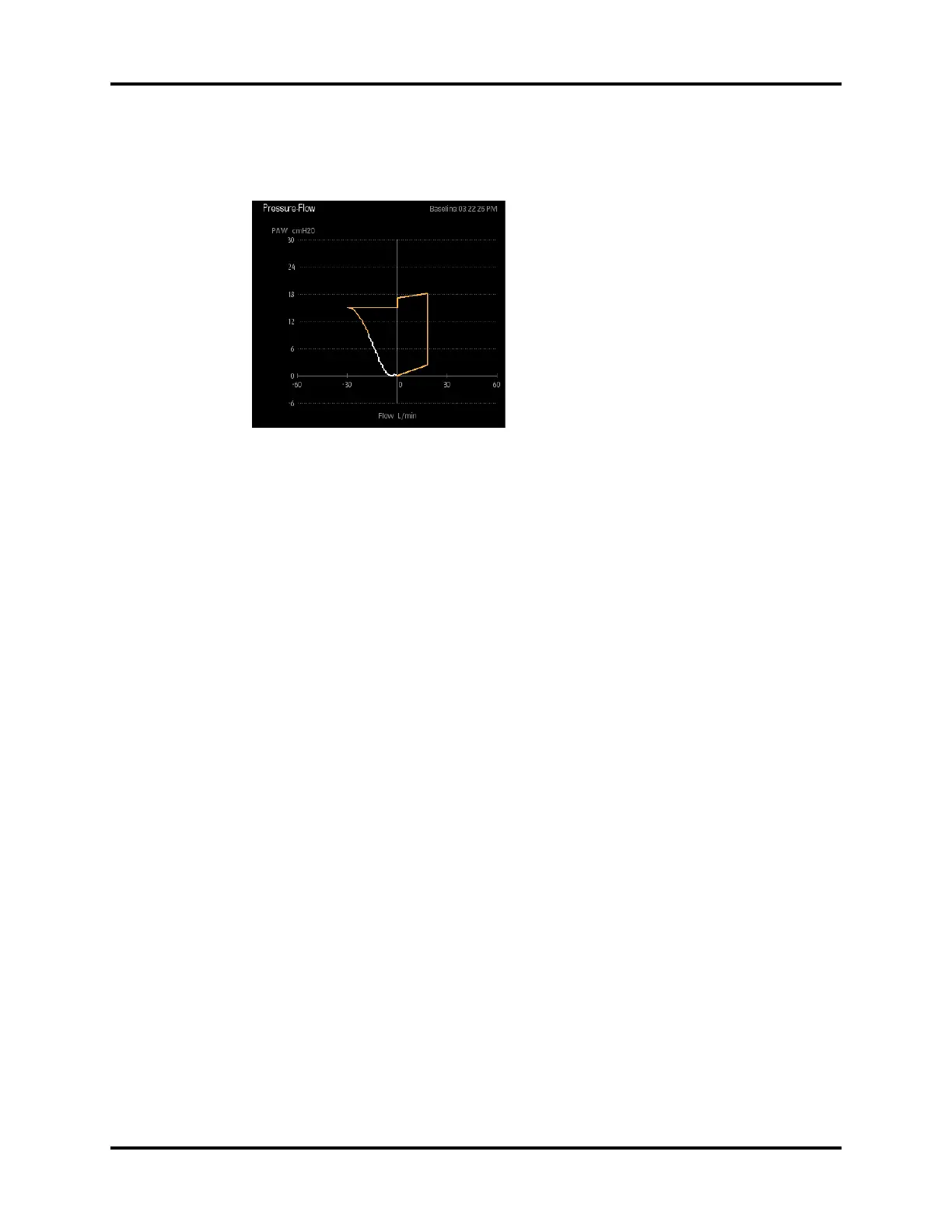

FIGURE 5-31 is an example of the Pressure - Flow loop.
FIGURE 5-31 Pressure - Flow Loop
The Y-axis of the Pressure - Flow Spirometry loop labeled PAW represents airway pressure. The X-
axis represents Flow.
