A7™ O
per
ating Instructions
046-004667-00
7 - 11
Maintenance
Cleaning and Disinfection
2.
Detach the bellows fr
om the base plate (see FIGURE
7-6).

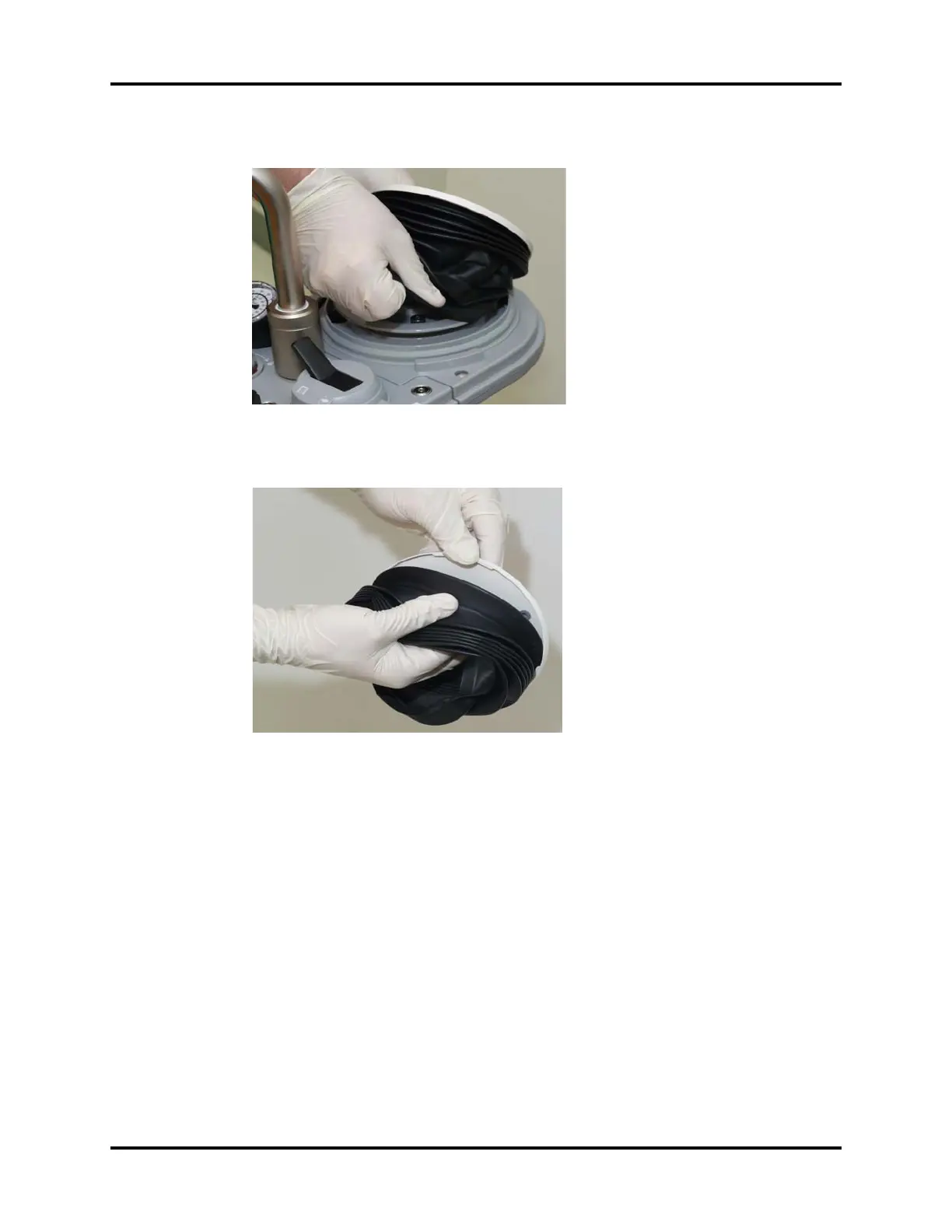

FIGURE 7-6
Detaching the Bellows
3.
Detach the top plate fr
om the bellows (see FIGURE
7-7).
FIGURE 7-7
Detaching the Bellows T
op Plate
208
210
