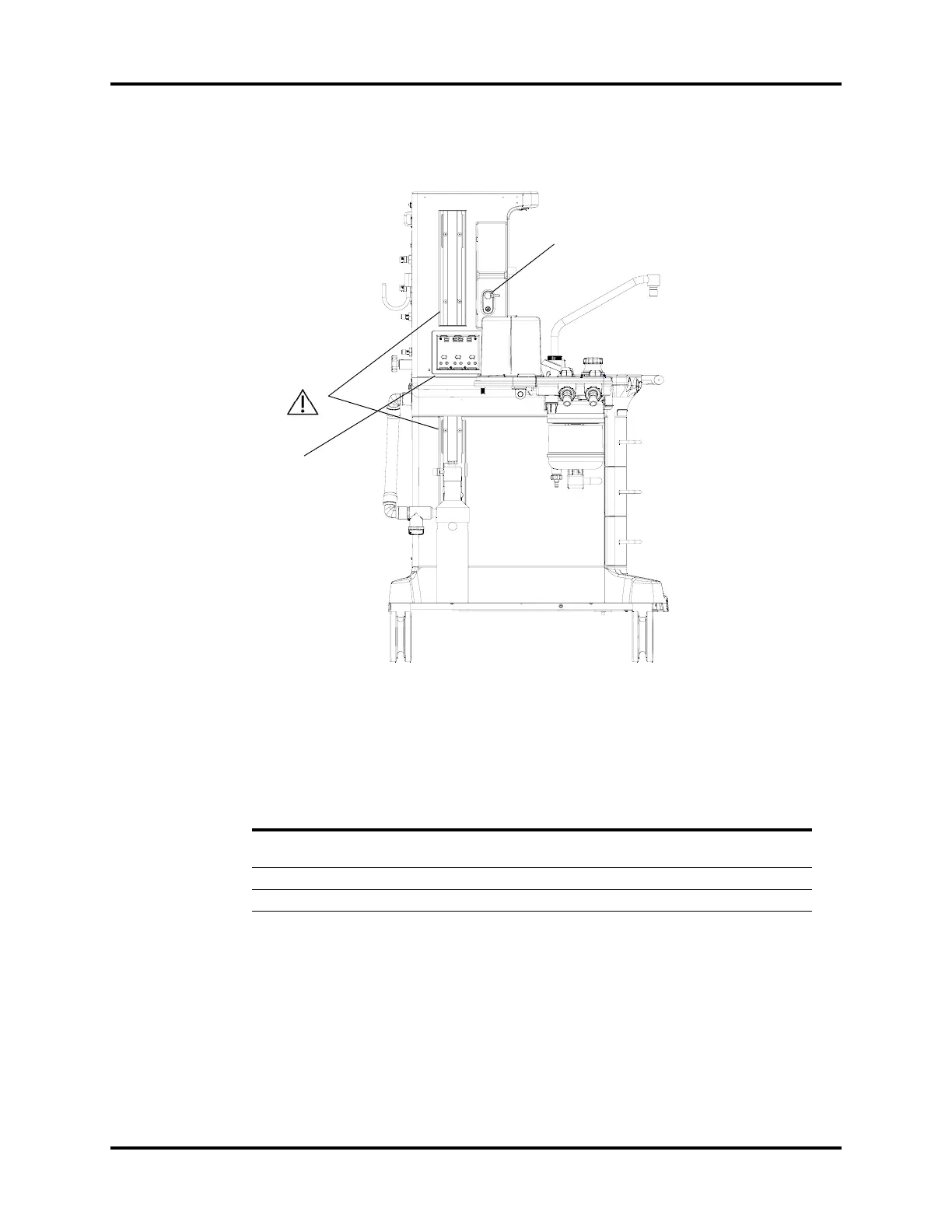

FIGURE E-3 Main Unit (Left View)
ATTENTION!
NUMBER DESCRIPTION
07 Auxiliary O
2
/Air Gas Outlet: Nozzle (barbed connector) for auxiliary O
2
/Air output.
Combines the auxiliary O
2
/Air flowmeters into a single output.
08 Maximum supporting weight: 25 kg at a maximum distance of 0.31 m.
09 Only AG module provided by Mindray can be used.
