Abbreviations, Symbols, and Units of Measure Attention Symbols

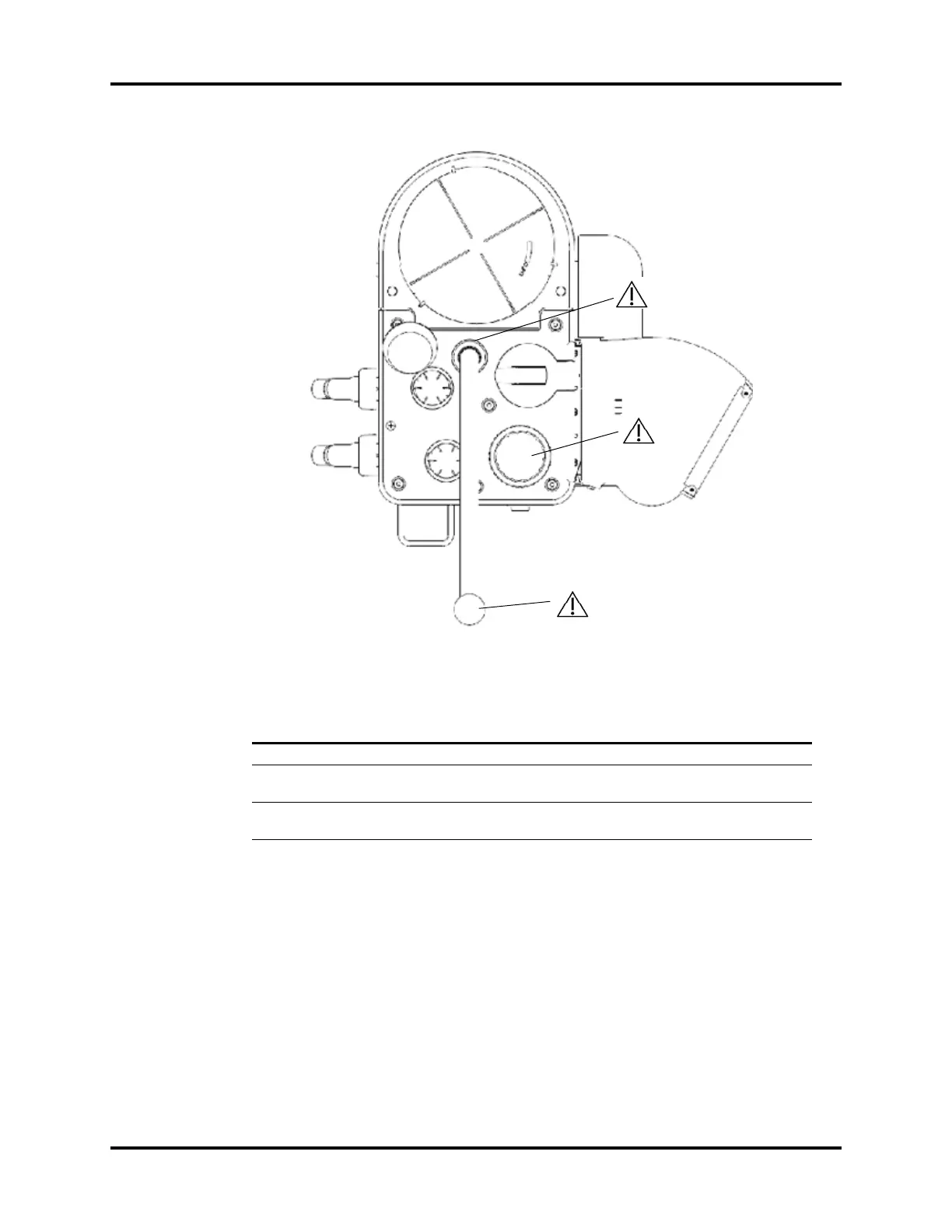

FIGURE E-6 Breathing System (Top View)
ATTENTION!
NUMBER DESCRIPTION
14 Autoclavable up to 134°C. Polyphenylsulfone (PPSU).
15 APL Valve: The APL valve and PAW gauge numerics are for reference only. Calibrated
patient airway pressure is displayed on the user interface.
16 Do not push down on the bag arm forcefully or hang heavy objects onto it. Excessive
weight may bend and damage the bag arm.
16
14
15
