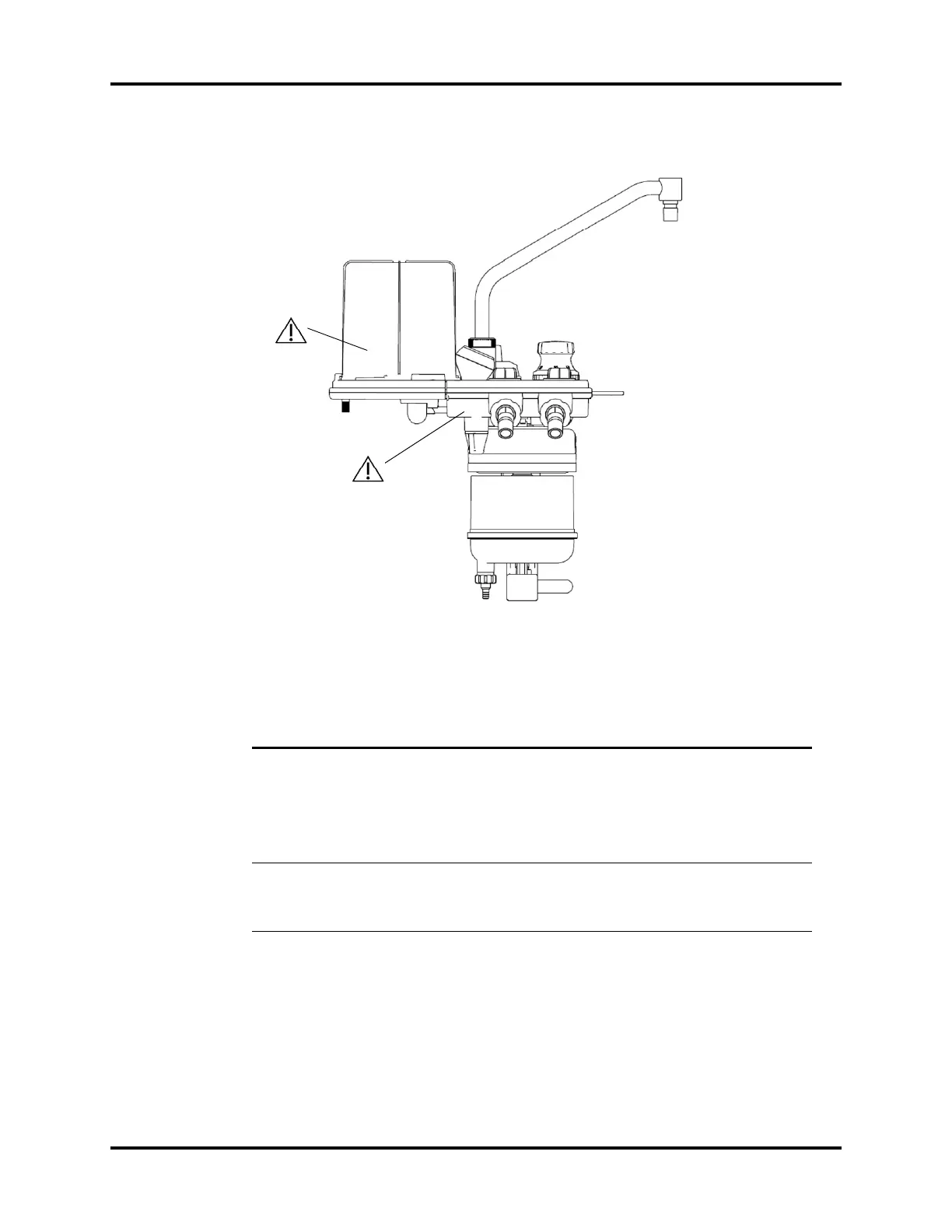

FIGURE E-7 Breathing System (Left View)
ATTENTION!
NUMBER DESCRIPTION
17 134°C >PPSU<. Autoclavable up to 134°C.
Operating the A7 with a full water trap in the breathing system block does not allow
the water to condense appropriately. The trap should be removed and emptied when
filled with water.
Operating without a water trap will cause the leak test to fail.
18 Bellows Dome: The bellows dome is a transparent cover with graduation marks from
300 to 1500. These marks are for qualitative purposes only. Tidal volume (VT) should
be read exclusively from the display of the user interface. Delivered tidal volume (VT)
is a combination of bellows displacement and fresh gas flow.
18
17

Mindray A7 Specifications

General

Type	Anesthesia Workstation
Brand	Mindray
Model	A7
Display	15-inch color touchscreen
Oxygen Flush	Yes
Gas Inlets	O2, N2O, Air
Ventilation Modes	SIMV, PSV
Breathing System	Integrated
Gas Monitoring	O2, CO2, N2O
Monitoring Parameters	FiO2
CO2 Monitoring	Mainstream or Sidestream
Power Supply	100-240 V, 50/60 Hz
