Mindray A7 Operating Instructions

A7™ Operating Instructions 046-004667-00 3 - 19

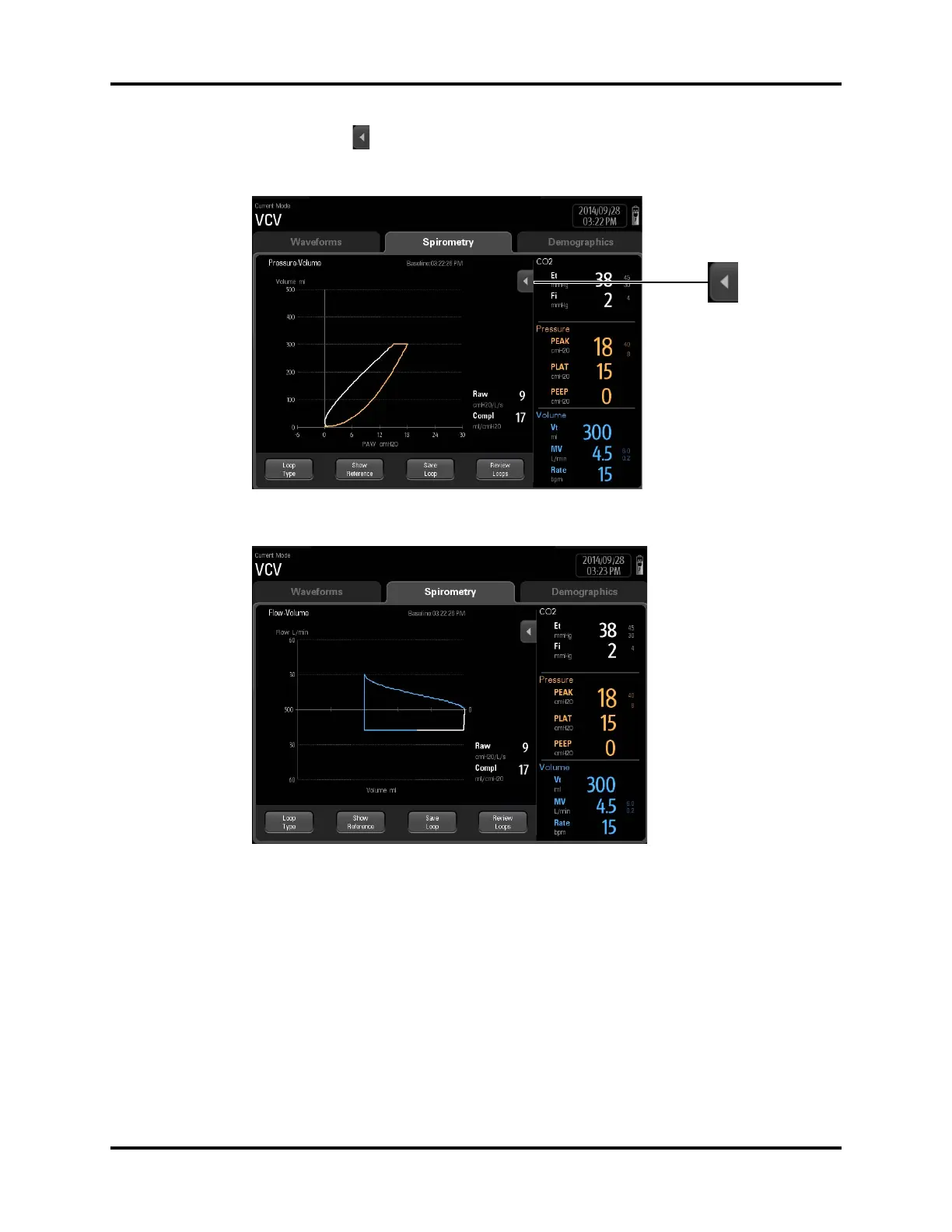

System Interface Spirometry Tab
You can press the button (see FIGURE 3-25) to see the spirometry loop and waveforms (see
FIGURE 3-24).
FIGURE 3-25 Spirometry: Pressure-Volume Loop
FIGURE 3-26 Spirometry: Flow-Volume Loop

Mindray A7 Specifications

General

Type	Anesthesia Workstation
Brand	Mindray
Model	A7
Display	15-inch color touchscreen
Oxygen Flush	Yes
Gas Inlets	O2, N2O, Air
Ventilation Modes	SIMV, PSV
Breathing System	Integrated
Gas Monitoring	O2, CO2, N2O
Monitoring Parameters	FiO2
CO2 Monitoring	Mainstream or Sidestream
Power Supply	100-240 V, 50/60 Hz
