Mindray A9 Service Manual

2-82

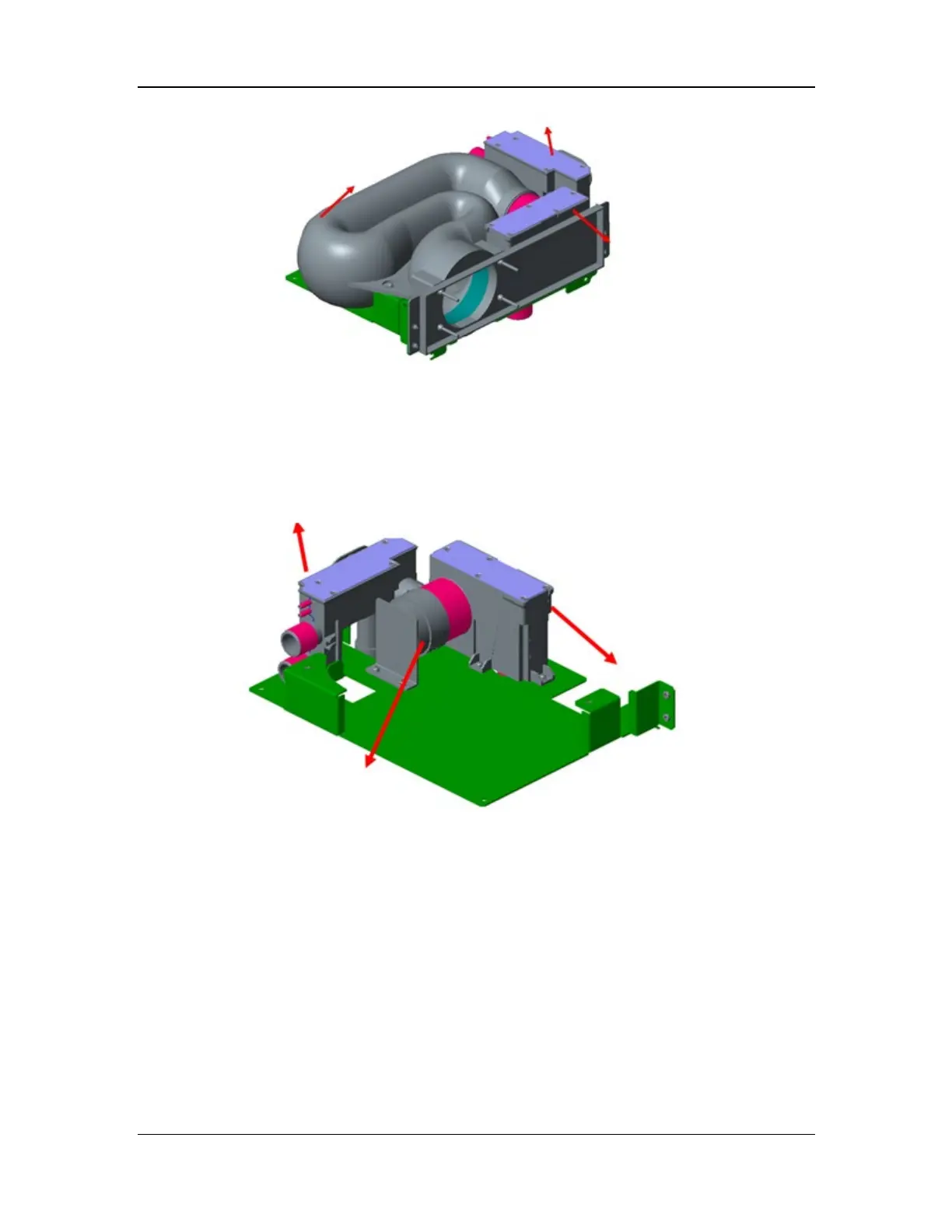

Figure 41 Structural diagram of the active AGSS gas reservoir assembly
The passive AGSS gas reservoir assembly consists of three parts: AGSS inlet gas reservoir,
AGSS pump box, and AGSS passive plug. The AGSS pump box is connected to the pneumatic
block through a silicone tube. After the waste gas enters the gas reservoir, it is pumped to the
AGSS pneumatic block assembly under the action of the gas reservoir and then directly
exhausted to air. The structural diagram of the passive AGSS gas reservoir assembly is shown
below.
Figure 42 Structural diagram of the passive AGSS gas reservoir assembly
AGSS airway
AGSS inlet gas reservoir
AGSS pump box
AGSS inlet gas reservoir
AGSS pump box
AGSS passive plug

Mindray A9 Specifications

General

Type	Anesthesia Workstation
Integrated Gas Analysis	Yes
Backup Battery	Yes
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 55°C
Battery Type	Lithium-ion
Ventilation Modes	Volume Control, Pressure Control, SIMV, Manual Ventilation
Display	Touchscreen
Patient Monitoring	ECG, SpO2, NIBP, EtCO2, Temperature
Connectivity	Ethernet, USB
Portability	Mobile (with wheels)
Battery Life	Minimum 90 minutes (typical)
Altitude	Up to 3000 meters
Power Supply	100-240 VAC, 50/60 Hz
Charging Time	Approximately 4 hours
Storage	Internal storage for patient data and system logs
Supported Languages	Multiple languages
Certifications	CE, FDA
