Mindray A9 Service Manual

2-14
Part Description
F7
Absorber bypass assembly
The absorber bypass assembly is used to retain the
pressure in the breathing circuit when you replace the
sodalime in the CO2 absorber canister.
F8
Water collection cup
The water collection cup is used to collect condensate
from the breathing system. It must be periodically
removed and emptied.
F9
CO2 absorber canister
The CO2 absorber canister is a container for holding
the CO2 absorbent (bulk or Pre-pak CO2 absorbent).
F10
Canister lock
The canister lock is a lever locking mechanism for
locking (in the horizontal position)/unlocking (in the
vertical position) the canister.

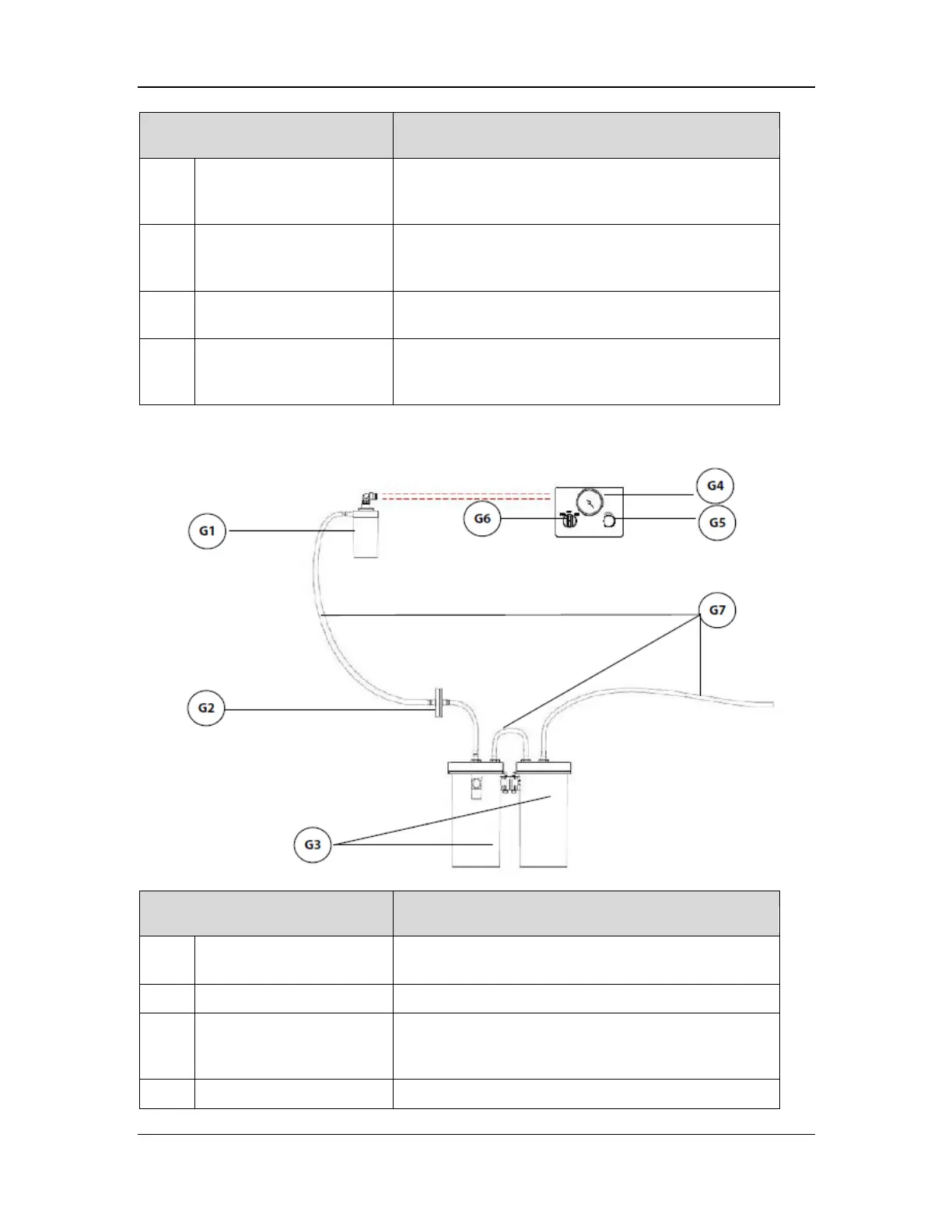

2.1.2.7 Negative Pressure Suction Device
Part Description
G1
Overfill protection
Overfill protection is used to prevent overfill of waste
liquid, so as to ensure pipeline safety.
G2
Filter
The filter is used to filter out moisture and impurities.
G3
Liquid collection bottle
The liquid collection bottle is used to collect effusions,
hematocele, pus, and other contaminants from the
patient.
G4
Negative pressure gauge
The gauge is used to indicate the negative pressure.
