2.2.8.6 Gas Inlet Pressure Sensor Board

The gas inlet pressure sensor board is used to detect the pressure at the pipeline gas inlet. It has

the same appearance as the EFCS outlet pressure sensor board but has a different measurement

range. Pay attention to the part numbers during servicing.

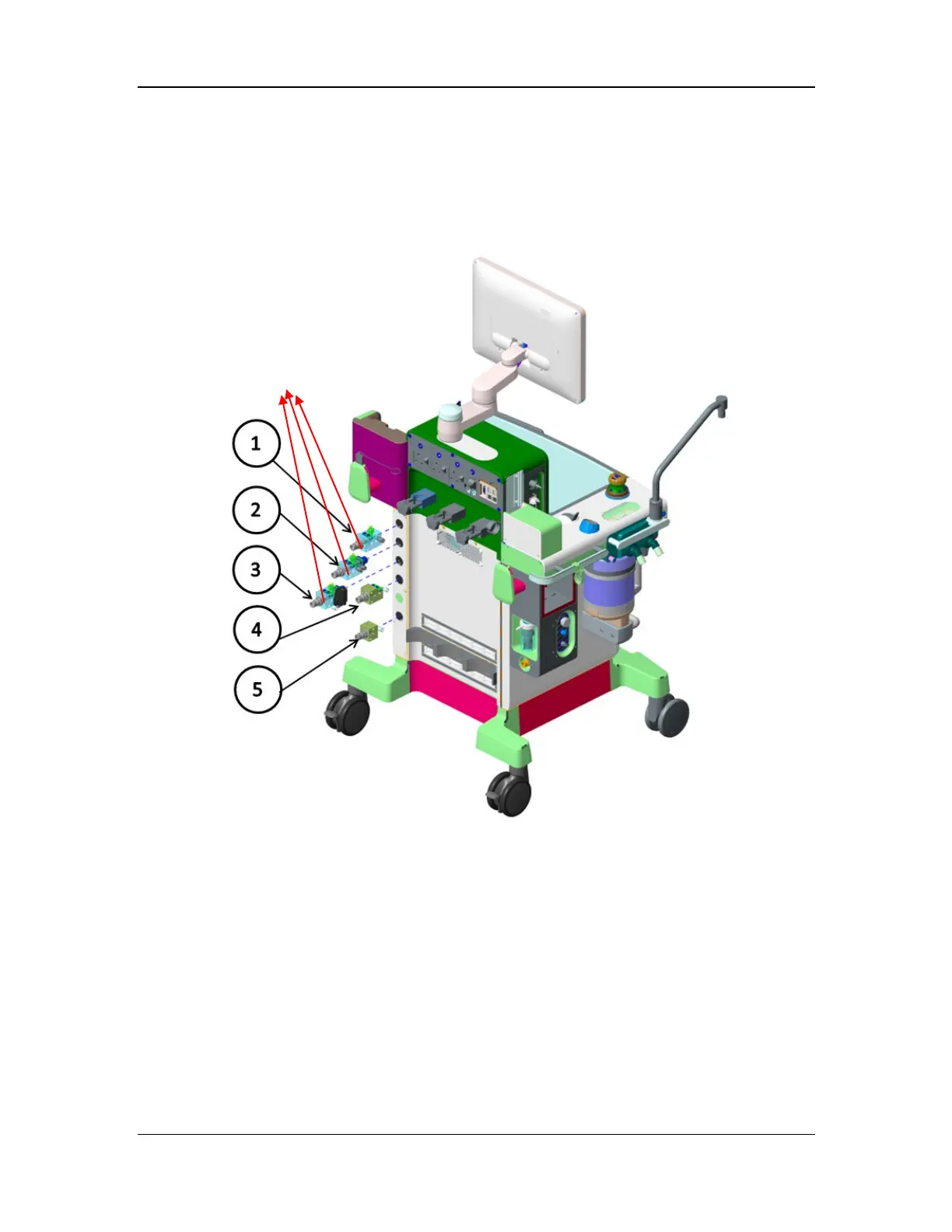

Installation position of the gas inlet pressure sensor board

The gas inlet pressure sensor

board is installed here.
