2-
51
2.2.8.7
APL Lighting Board
The
APL
lighting board
is use
d to indicate
the manual
APL
knob.

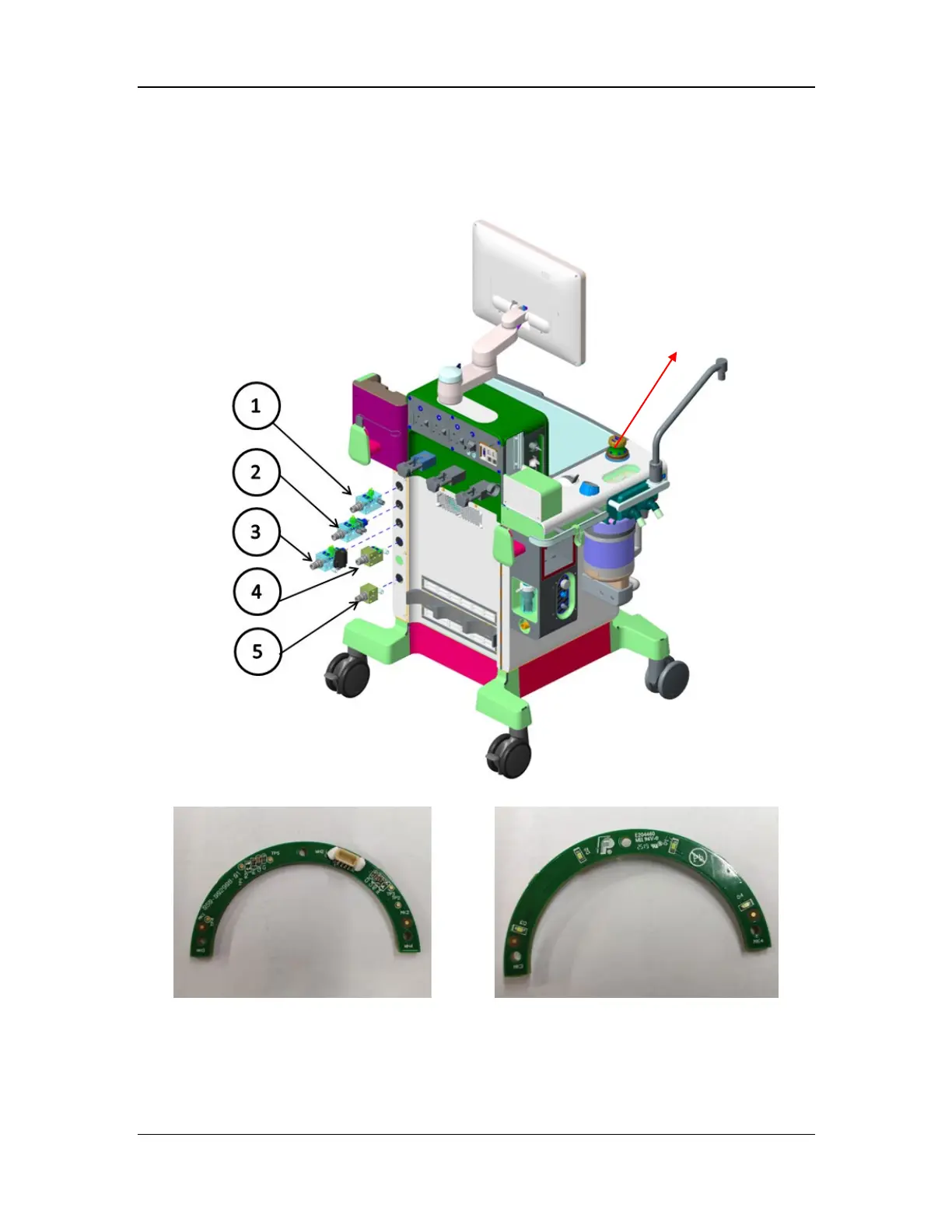

Install
ation position of th
e
APL
lighting
board
APL
lightin
g board
2.2.8.8
External I/O Interf
ace Board
The external I
/O interface b
oard provides ext
ernal ports, inc
luding four U
SB ports, two ne
twork
ports, and
one DB9 por
t (
for calibratio
n and device in
terconnection).
No software is co
nfigured
for this b
oard.
The APL li
ghting board
is installed h
ere.
