4 Units Description
4-24

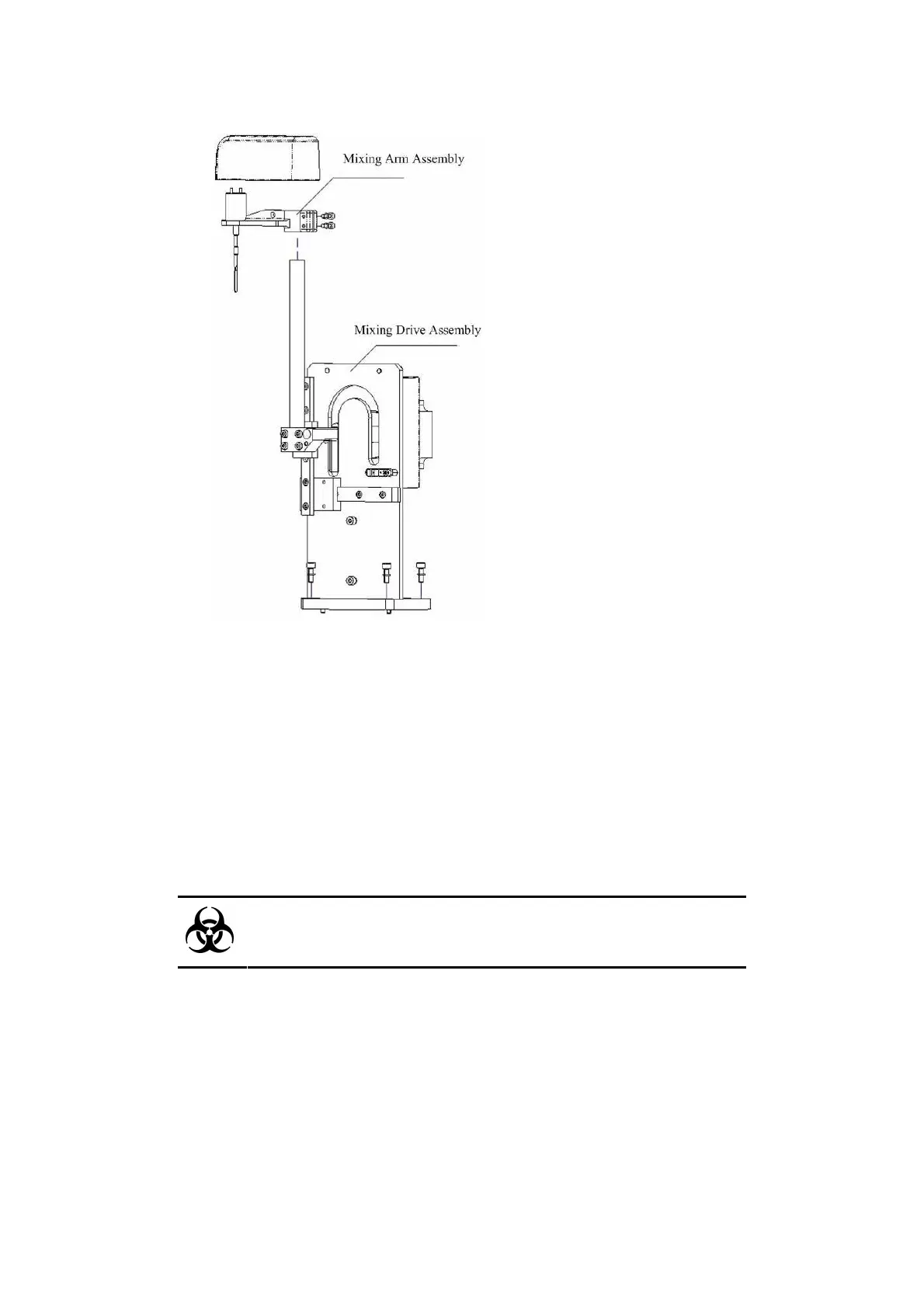

Figure 4-26 Mixing Unit
1. The mixing arm assembly is fixed on the mixing drive assembly with two M3x10
hexagon socket head screws allocated with plain pad and spring pad. Remove the
mixing arm assembly by loosening the two screws.
2. The mixing unit is fixed on the base board with four M4x102 hexagon socket head
screws allocated with spring pad. Remove the mixer drive assembly by loosening
the two screws.
Precaution:
Remove the cables before performing above steps.
4.5.3.1 Mixing Arm Assembly
BIOHAZARD
Do not touch the mixing bar.Wear gloves when necessarily.
