4 Units Description
4-25

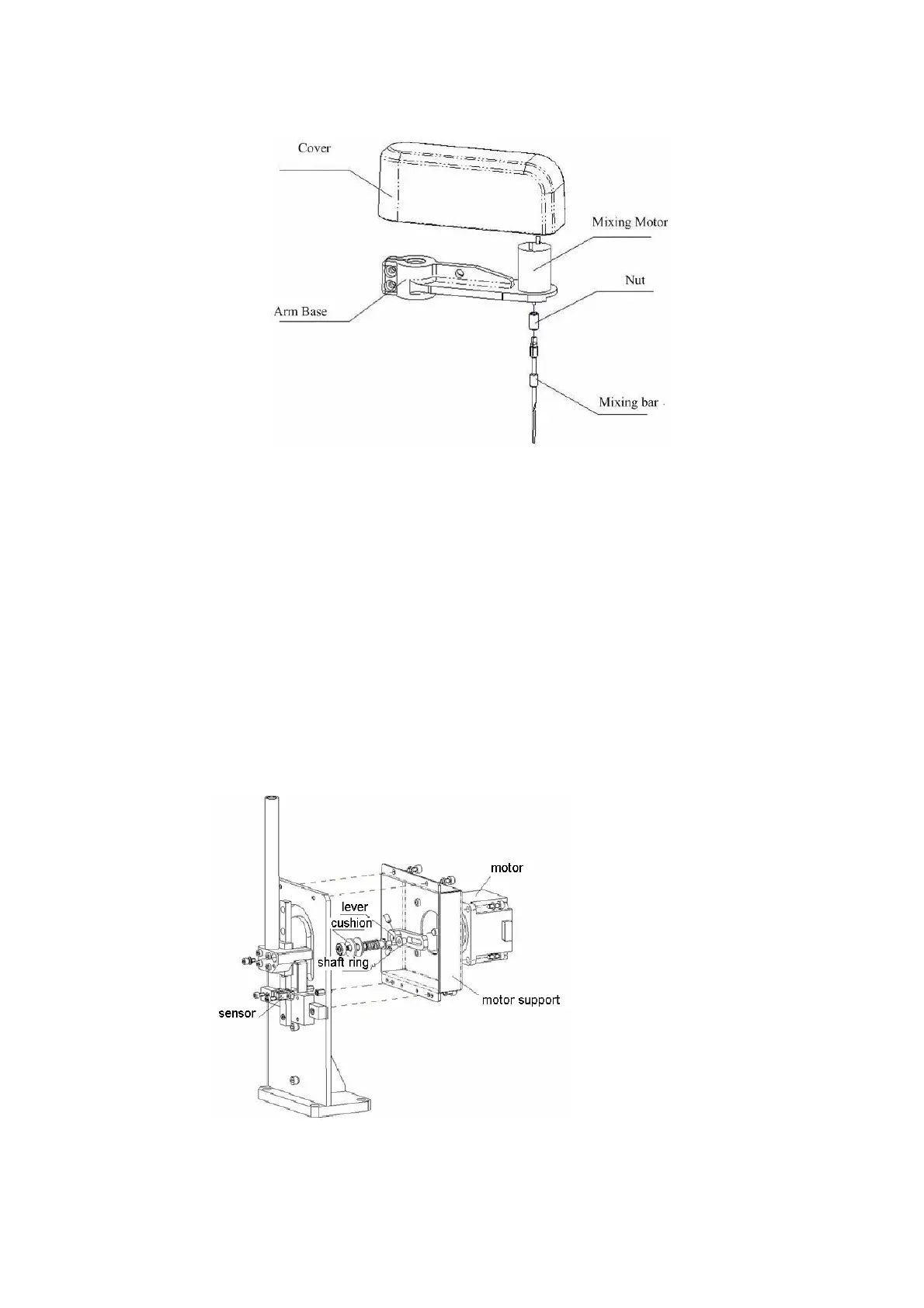

Figure 4-27 Mixing arm assembly
1. Remove the mixing bar by loosening the nut.
2. The mixing motor is fixed on arm base with two M2x4 cross pan head screws
allocated with plain pad. Remove the mixing motor by removing the cover and the
two screws.
Precautions:
1. Make sure that the end of mixer is in contact with protruding plane of the mixing
motor as close as possible before screwing the nut.
2. Make sure to keep the mixing bar clean while removing and installing it.
3. Remove the cables before performing above steps.
4.5.3.2 Mixer Drive Assembly
Figure 4-28 Mixing drive assembly
1. The motor is fixed on motor support with four M4x10 hexagon socket head screws
allocated with spring pads. Remove the motor by loosening the four screws, and
To Next Page
