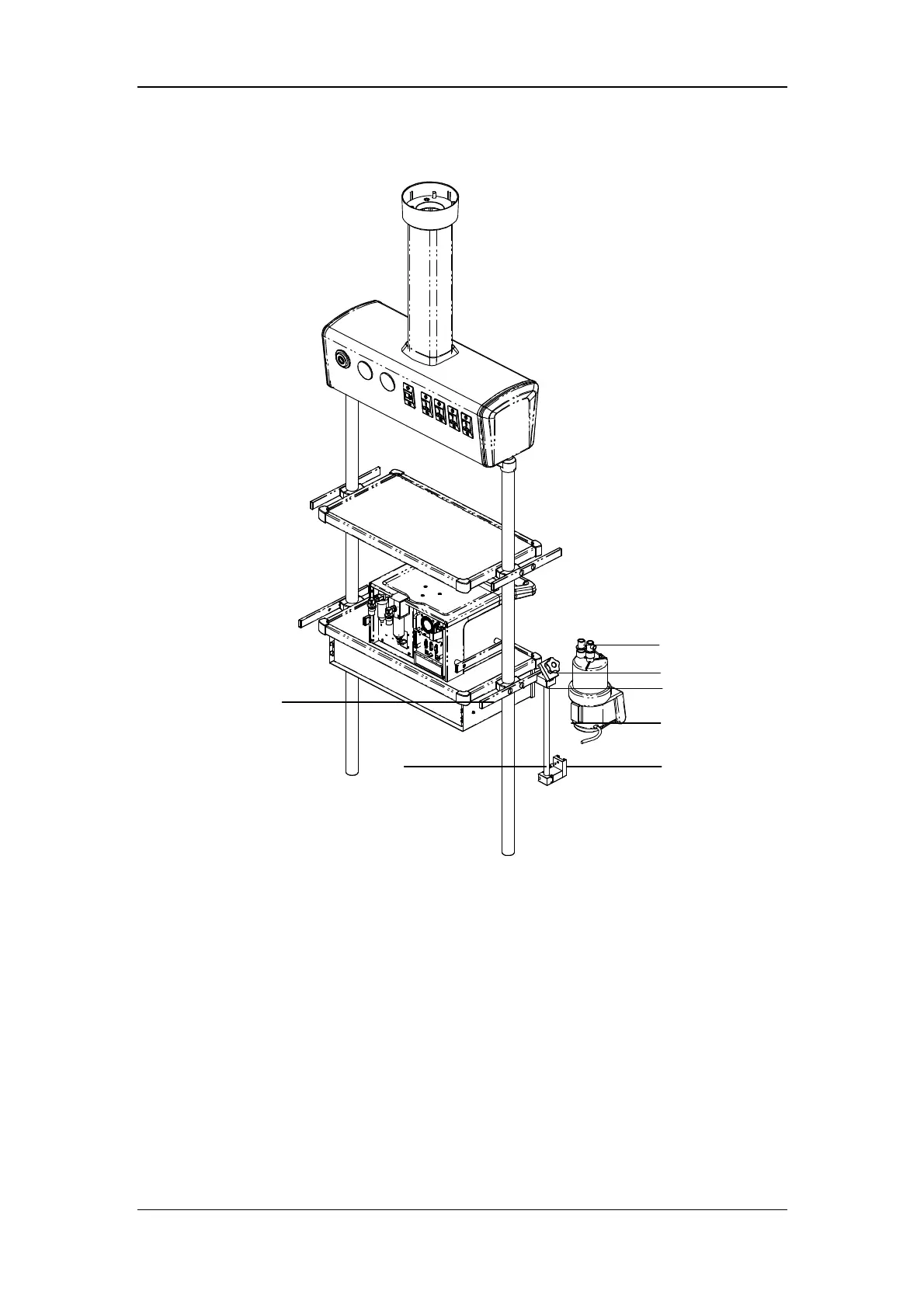

10.2.6.2 Humidifier Installed onto the Pendant
A. Humidifier B. Knob for fixing block
C. Fixing block D. Humidifier sliding wheel
E. Humidifier bracket fixed seat F. Screw G. Beam
 To disassemble the humidifier:
1. Remove the hoses connected to the humidifier.
2. Remove the screws.
3. Lift off the humidifier from the humidifier bracket fixed seat.
B
D
E
F
A
C
G
