Mindray SynoVent E5 - Page 82

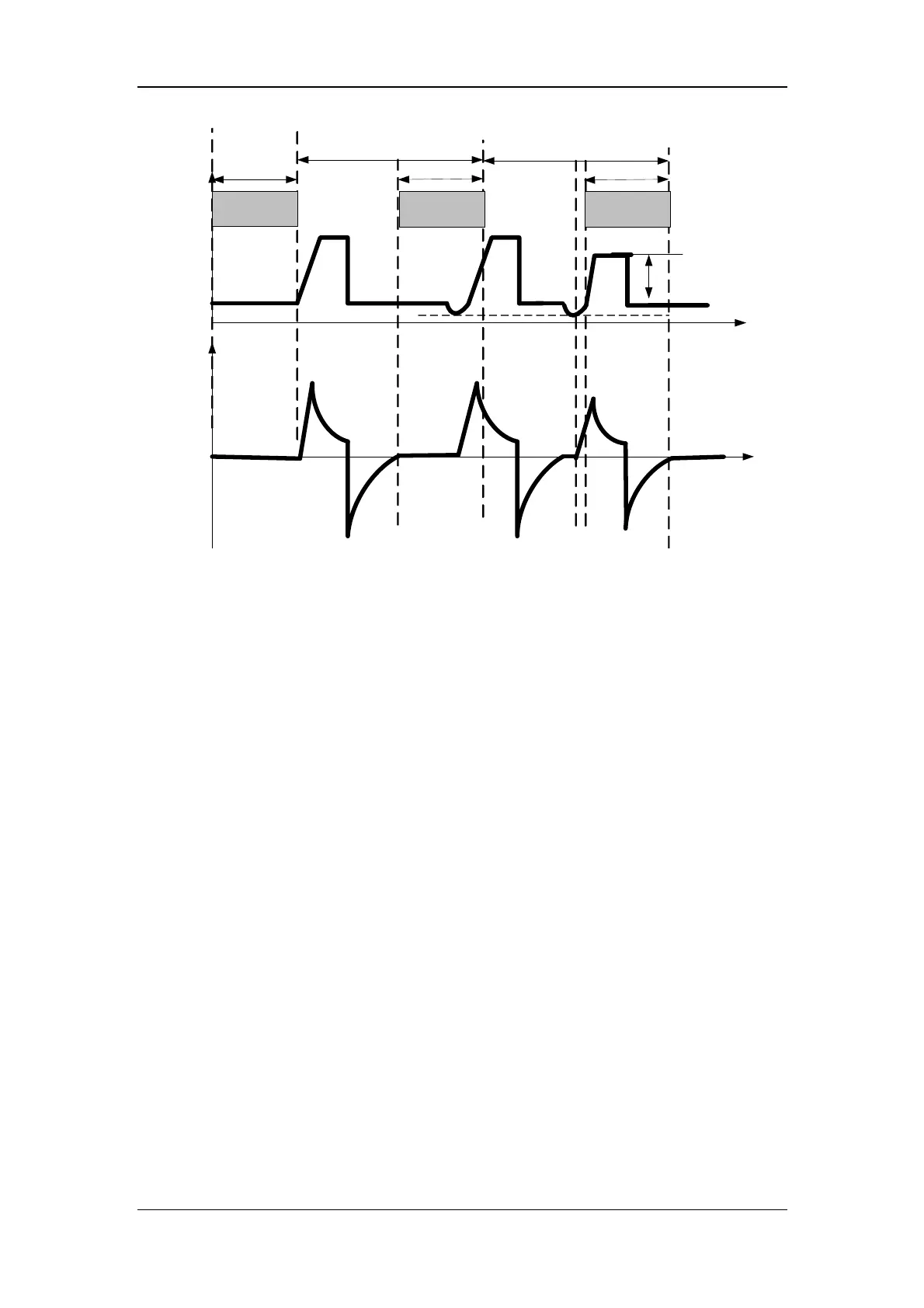

6-14
Paw
Flow
Time
Time
Pressure
control
SIMV cycle
5 s 5 s
Trigger
window
5 s
SIMV cycle
Insp. trigger
?Psupp
P
-
SIMV+PSV
Trigger
window
Trigger
window
Pressure
control
In V-SIMV under non-NIV, you need to set the following ventilation parameters:
1. [O2%]: Oxygen concentration
2. [TV]: Tidal volume
3. [Tinsp]: Time of inspiration
4. [fSIMV]: Frequency of SIMV
5. [Flow]: Inspiratory flow
6 [Plimit]: Pressure limitation
7 [PEEP]: Positive end-expiratory pressure
8. [Exp％]: Expiration trigger level
9. [△Psupp]: Pressure support level
10. [Tslope]: Time of pressure rising
11. [F-Trig] or [P-Trig]: Inspiration trigger level
12. [fapnea]: Frequency of apnea ventilation
13. [Apnea Vent]: Apnea ventilation switch
14. [ATRC]: Automatic tube resistance compensation
In V-SIMV under non-NIV, you need to set the following ventilation parameters:
1. [O2%]: Oxygen concentration
2. [TV]: Tidal volume
3. [Tinsp]: Time of inspiration
