Structure and Assembly/Disassembly 7-31

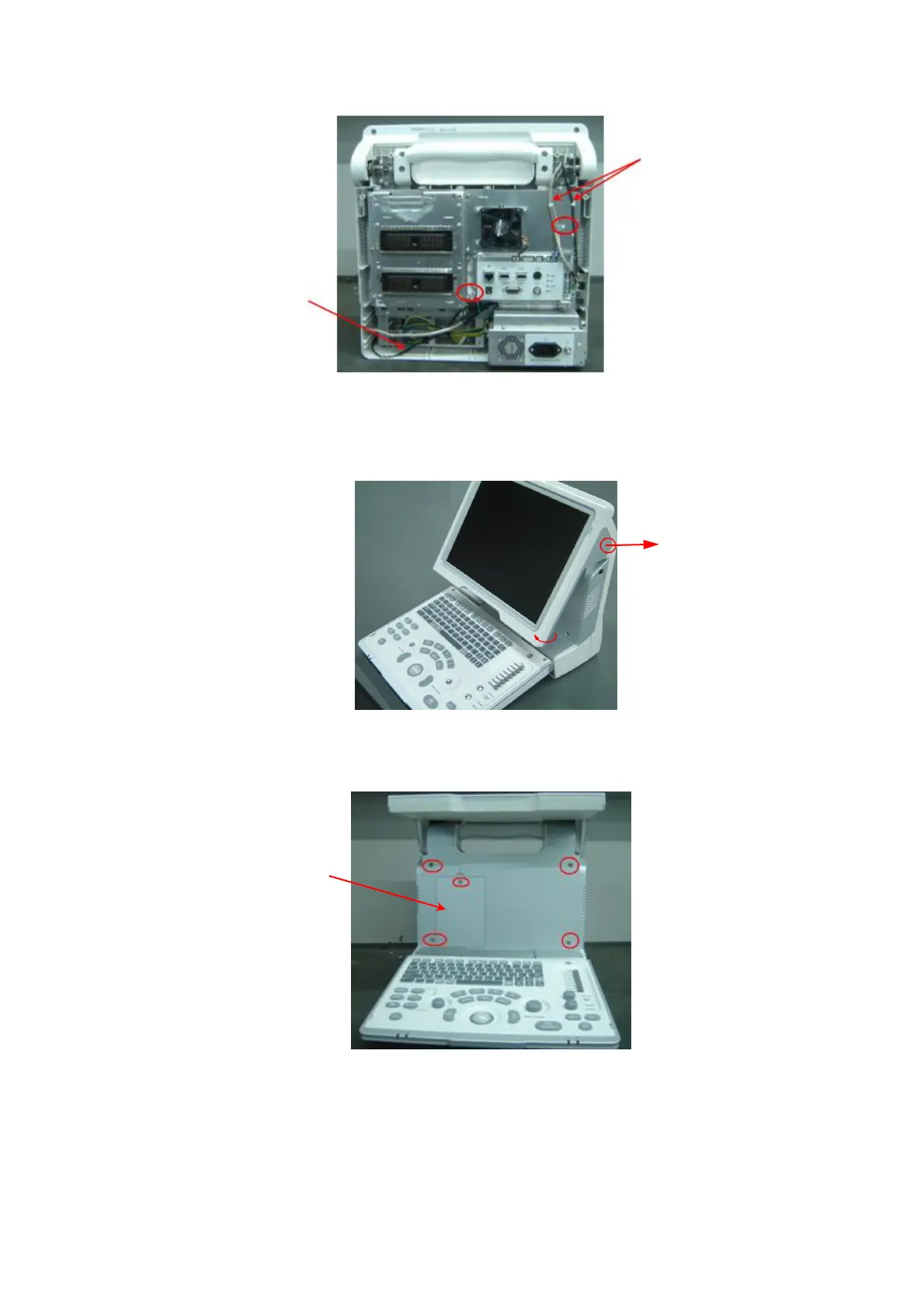

Figure 7-53 Disassembly of Speaker (2)
4. Fasten one M3x12 screw removed (7.2.4.2) into the damping axis adjusting hole of display
about 2-3 rings to confirm that the screw is fixed, then pull out the monitor simultaneously
rotate the display assembly to adjust the monitor to the horizon position.
Figure 7-54 Disassembly of Speaker (3)
5. Remove 5 panhead screws with washers M3X8 used to fix the front cover and HDD cover,
and then take the HDD cover assembly.
Figure 7-55 Disassembly of Speaker (4)
6. Put the machine on the horizontal position; remove 3 panhead screws with washers M3X8
which are fixed on the rack of the main unit at the bottom of the main unit, take out the main
unit rack assembly.
