Hardware Principle 4-3
4.2.1 Probe Board
4.2.1.1 Probe Board of Z6 Series
High-voltage
switch
Relay
CPLD
Socket A
(156 pin)
Relay
Driver circuit
Socket B
(156 pin)
POUTA[128:1]
POUTB[128:1]
A socket control signal（Note 1）
RELAY_EN
PRB_A_VDD_EN
,
PRB_A_VCC_EN
,
HV_PWR_SW1
BOARD_ID[7:0]
3.3V/5V/+95V/-95V
Power ON/OFF
Control circuit
POUT[128:1]
driver
LC filter
Driver
driver
B socket control signal
（Note2）
PRB_B_VDD_EN,PRB_B_VCC_EN,HV_PWR_S
W2
3.3V/5V/+95V/-95V
Power ON/OFF
Control circuit
BOARD ID
CTRL_PROBE_A_245_OE_N
Probe board of Z6 series
+5V
+95V
-95V
RELAY_PWR_EN
Note:
1.A socket control signal:
PROBE_A_SPI_CLK/CLK
PROBE_A_SPI_CS/nLE
PROBE_A_SPI_DIN/DATA0
PROBE_A_SPI_DOUT/DP_SWITCH
PROBE_A_SPI_nWP/DATA1
PROBE_A_SPI_SEL
Probe board
control signal
CTRL_PROBE_B_245_OE_N
PRB_A_ON
VDD
A socket control signal
VDD
PRB_B_ON
B socket
control signal
Driver
High-voltage
switch signal
Driver
driver
LDO
D+3V3
A+5V
A+95V
A-95V
+5V
D+3V3
2.B socket control signal:
PROBE_B_SPI_CLK/CLK
PROBE_B_SPI_CS/nLE
PROBE_B_SPI_DIN/DATA0
PROBE_B_SPI_DOUT/DP_SWITCH
PROBE_B_SPI_nWP/DATA1
PROBE_B_SPI_SEL

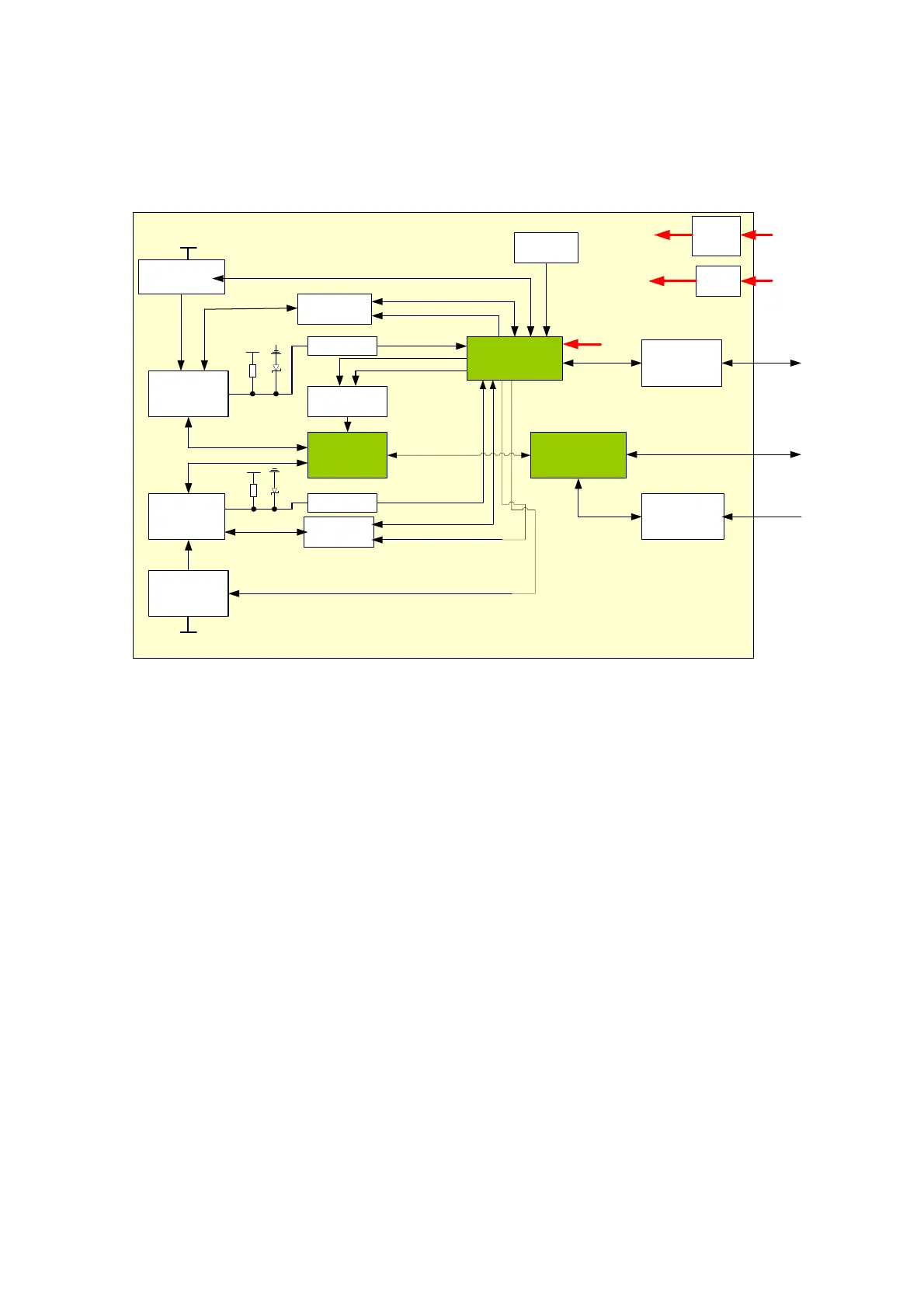

Figure 6-3 Principle Diagram of Z5 Series’ Probe Board
The function of Z6 series probe board describes as following:
The ultrasound signal is transferred from 64-channel to 128-array by the high-voltage
switch on the probe board.
Probe information could be obtained by probe board via reading probe online signal and
probe ID.
The probe board supplies power to corresponding Flash of saving probe ID when reading
probe ID, and Flash power shuts off after getting probe ID.
Support two 156-array probes (A and B), and only one probe could be chosen by relay
switching on the probe board.
Support 192-array probe and bi-planar probe.
Support 192-array probe and bi-planar probe to work normally by 5v output of the probe
broad.
The main board supplies ±95v output to 192-array probe and bi-planar probe to work
normally.
