3-10 System Installation
2. Connect the power supply adapter plug of the DVD recorder to an appropriate receptacle that
is well grounded.

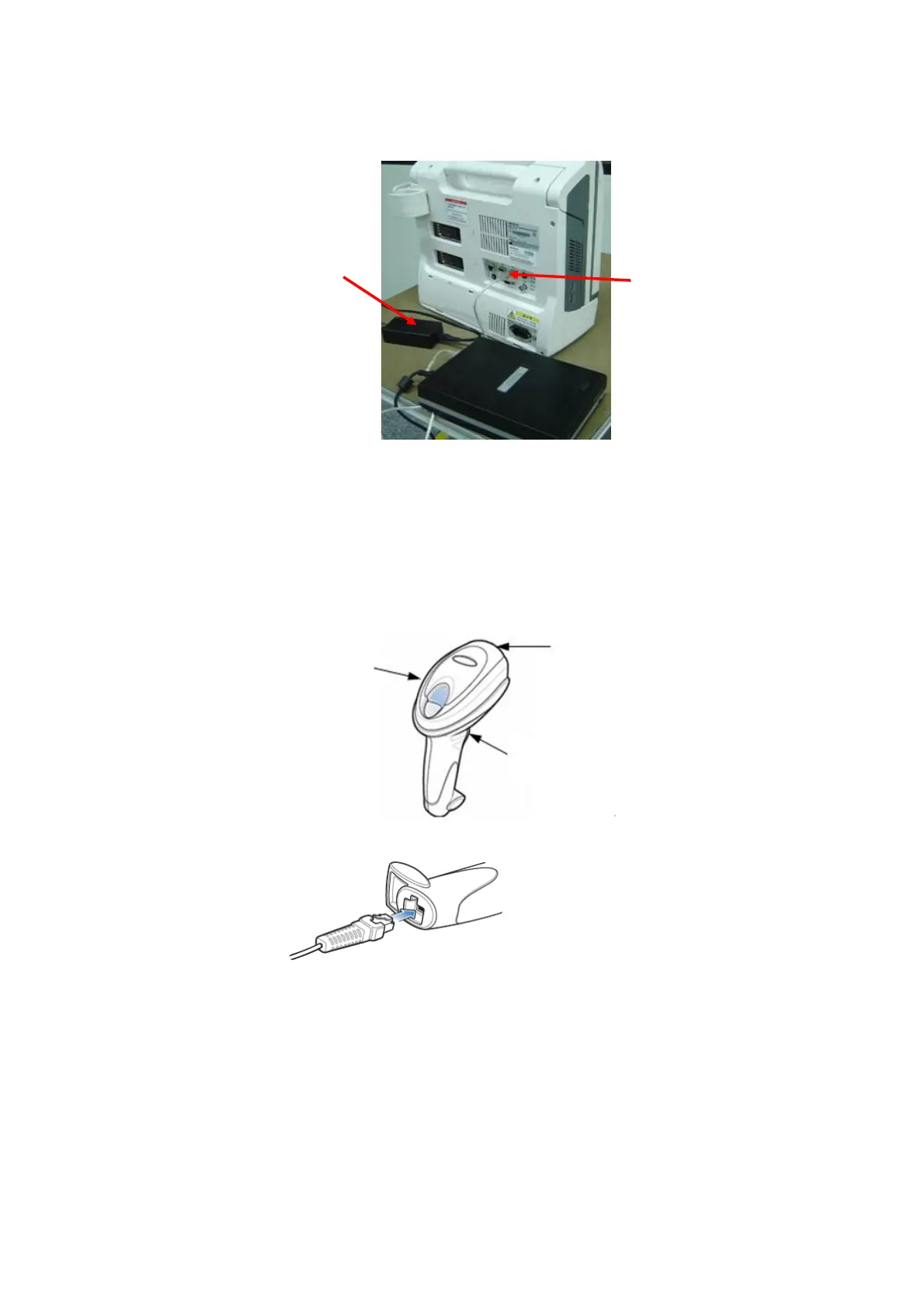

Figure 3-7 Installing External DVD-R/W
3.4.5 Installing Barcode Scanner
The system supports barcode reader to read the patient information (ID).
1. For structure of the scanner, see the figure below. The important parts are: LED indicator,
scanning surface, and the switch.
2. Connect the cable to the port on the scanner.
3. Connect the other end of the cable to the USB port on the ultrasound system.
