System Installation 3-7
Contrast adjustment:
, refer to the contrast control keys; press <Fn>+ to decrease the contrast;
and press <Fn>+ to increase the contrast.
Restore the factory default settings
Open the page via “Setup <F10>→General” and restore the brightness/contrast to factory
default setting.
On the monitor, the brightness adjustment comes before contrast. After readjusting the
monitor’s contrast and brightness, adjust all preset and peripheral settings.
3.3.4 Installing Probe Holder
Fix the probe holder hanger into the groove in the right side and the rear-right side of the main
unit, and push downwards to confirm the installation.

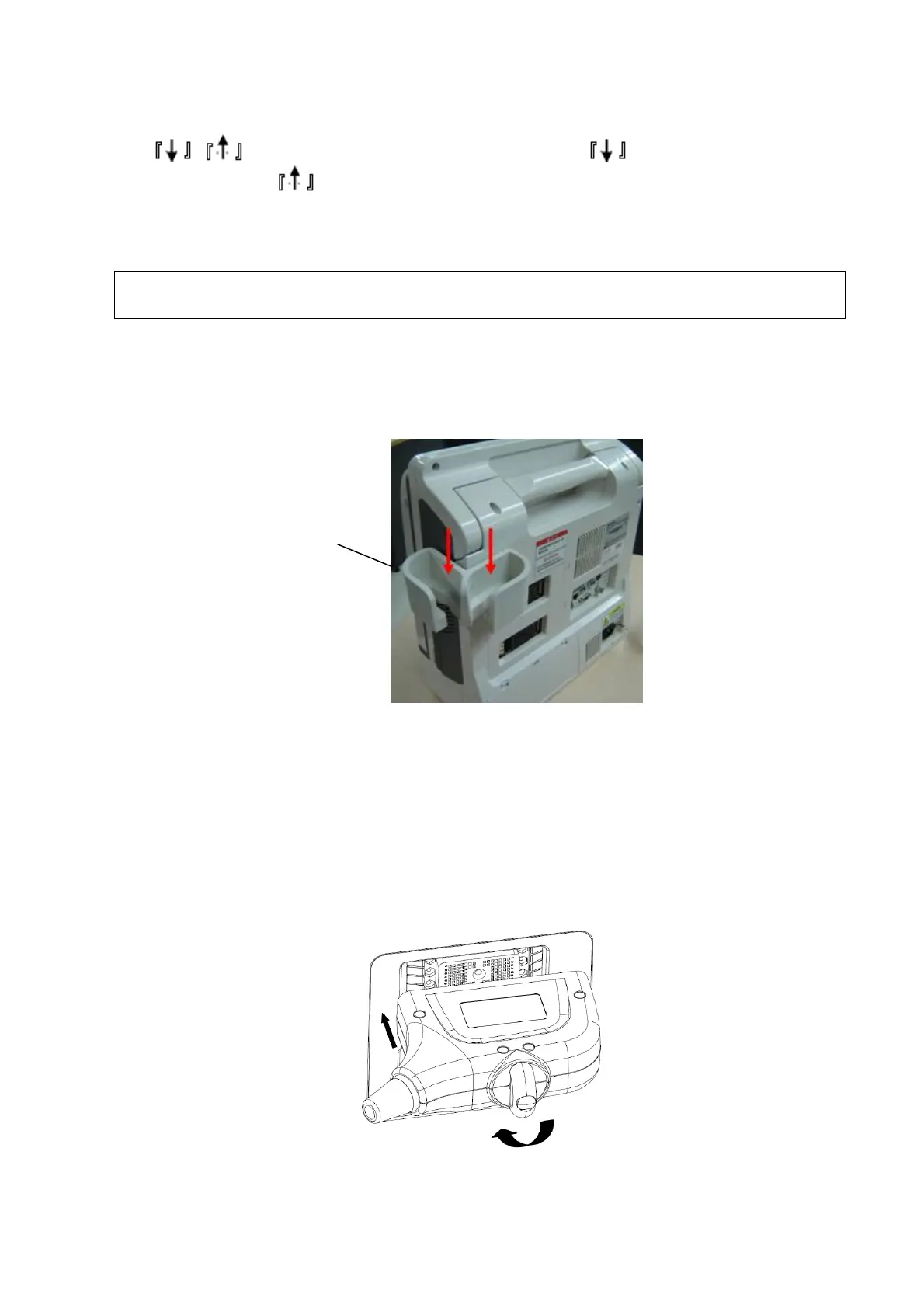

Figure 3-4 Installing the Probe Holder
3.3.5 Connecting a Probe
1. Check the probe connector, if is not open, Turn the locking lever anticlockwise to open it.
2. Keep the cable toward probe holder and insert the connector into the port.
3. Turn the locking lever 90° clockwise in the horizontal position to lock the probe connector.
4. Place the probe properly to avoid being trod or wrapping with other devices. DO NOT allow the
probe head to be hung freely.
5. To disconnect the probe, turn the locking lever 90° anticlockwise and pull the probe straight out.
